Solder Seal Wire Connectors, 200-Piece Heat Shrink Kit in Five Colors for AWG 26-10 Cable Repairs
Solder Seal Wire Connectors, 200-Piece Heat Shrink Kit in Five Colors for AWG 26-10 Cable Repairs
These solder seal wire connectors create fast cable splices with only a heat gun. A low-heat solder ring joins stripped conductors while the double-wall polyolefin sleeve shrinks and internal hot-melt adhesive seals around insulation, helping protect vehicle, motorcycle, marine and other outdoor wiring from moisture and corrosion.

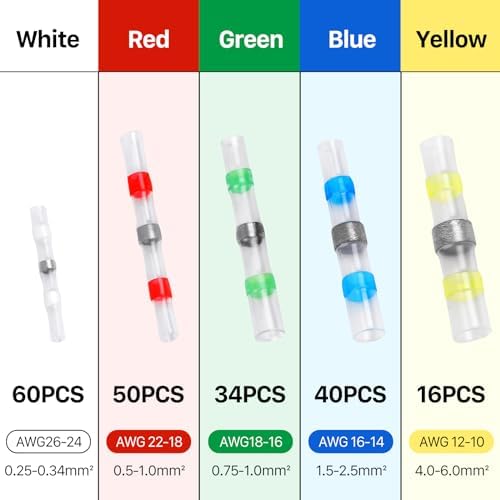

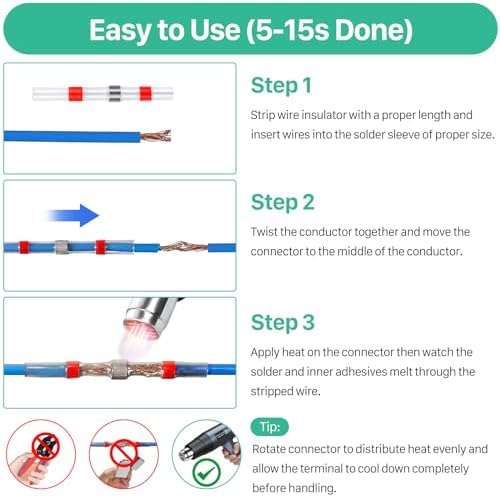

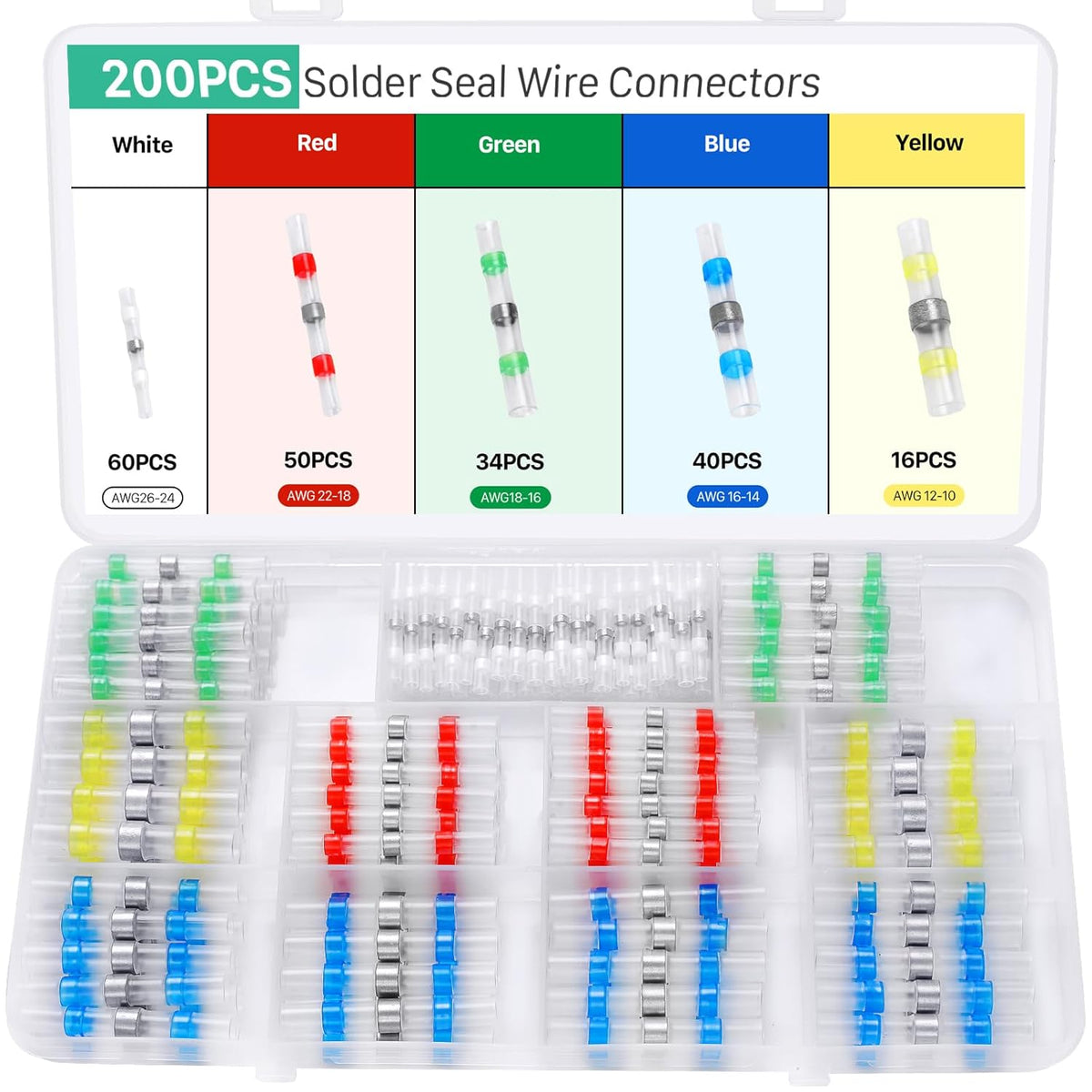

The storage box contains 200 white, red, blue, green and yellow connectors covering AWG 26–10. Insert clean stripped wires from opposite ends and apply even heat until the solder flows and both adhesive bands close around the insulation. The source suggests a 752–1112°F heat-gun setting; use equipment instructions and avoid overheating the sleeve or nearby cable.
Specifications
- Quantity: 200 connectors
- Sizes: 5 color-coded ranges
- Wire range: AWG 26–10
- Colors: White red blue green and yellow
- Contact: Tin solder ring
- Sleeve: Polyolefin

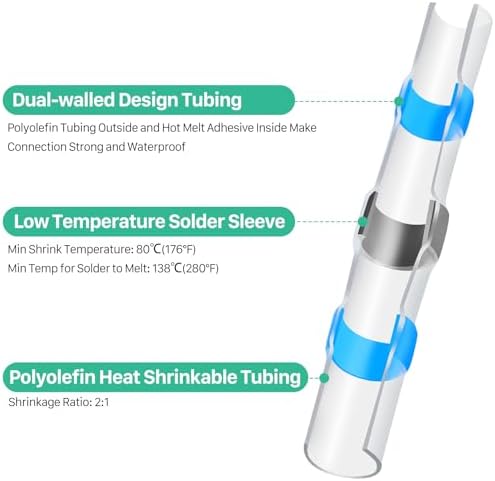

- Design: Double wall with hot-melt adhesive
- Installation: Heat gun
- Suggested heat setting: 752–1112°F
- Use: Automotive motorcycle marine and outdoor wiring
Frequently Asked Questions
How many connectors come in the kit?
The organizer contains 200 solder seal sleeves in five color-coded sizes.
Which wire gauges are covered?
The full assortment spans AWG 26 through AWG 10.
Do I need a crimping tool?
No. Position stripped conductors in the sleeve and apply controlled heat until solder and adhesive flow.
Where can these connectors be used?
They are intended for compatible motorcycle, automotive, marine and outdoor electrical splices.
