Ceiling Fan Mounting Brace with 15.5 cu. in. Electrical Box and 70 lb Fan Capacity – Westinghouse 0110000

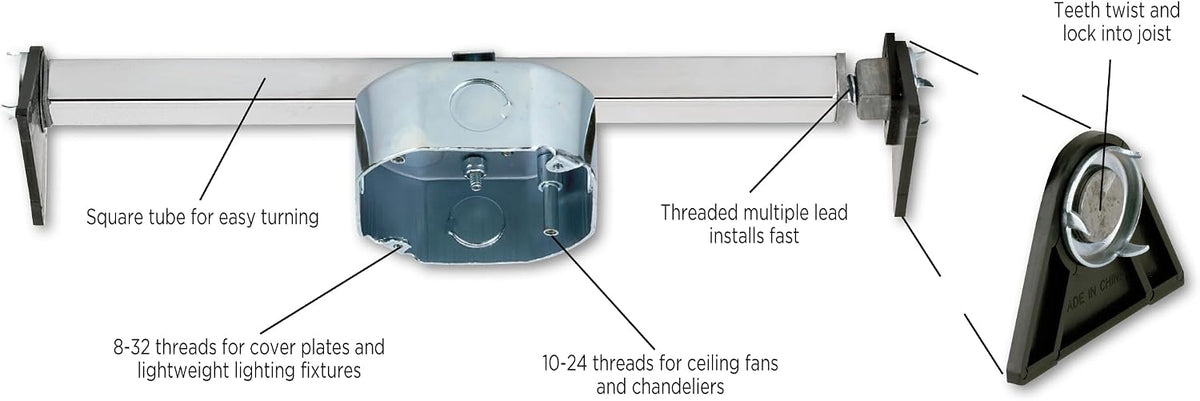

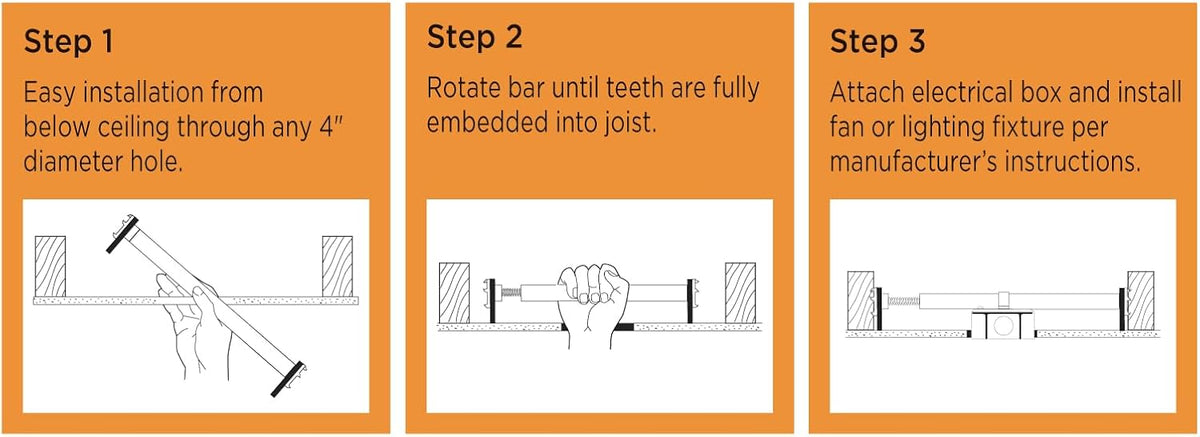

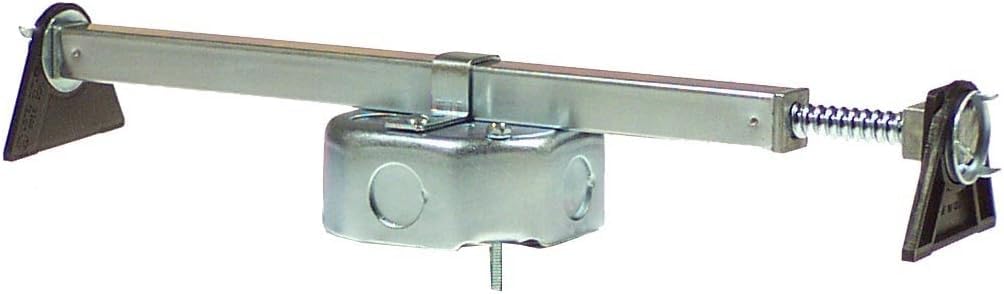

A ceiling fan mounting brace creates a secure support point between joists for a fan or heavier light fixture. The Westinghouse 0110000 Saf-T-Brace combines an expandable metal brace with a 15.5-cubic-inch dual-mount electrical box, allowing installation from below the ceiling while keeping wiring and fixture hardware in one supported assembly.

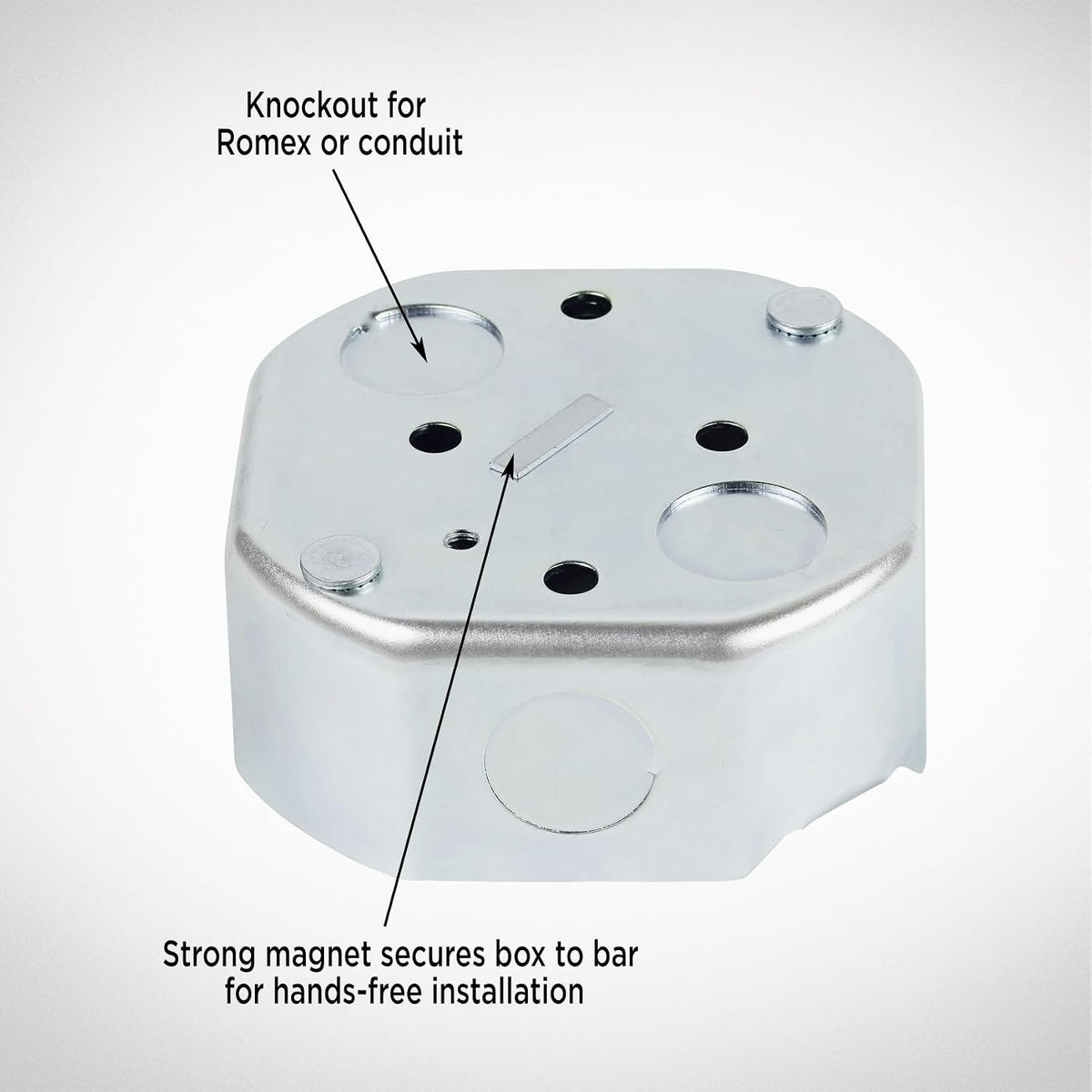

The brace supports ceiling fans up to 70 pounds. For light fixtures, its stated capacity is 150 pounds on 16-inch joist centers or 50 pounds on 24-inch centers. Six knockouts accept Romex or conduit, and one Romex connector is included. The package also provides the electrical box, Saf-T-Cap, mounting hardware and instructions for the silver unfinished assembly.

Specifications

• Brand: Westinghouse
• Product: Ceiling fan mounting brace
• Model: 0110000
• Brace name: Saf-T-Brace
• Fan capacity: Up to 70 lb
• Fixture capacity on 16-inch centers: Up to 150 lb
• Fixture capacity on 24-inch centers: Up to 50 lb
• Electrical box volume: 15.5 cu in
• Electrical box depth: 1.5 in
• Electrical box type: Dual mount
• Knockouts: 6 for Romex or conduit
• Included connector: 1 Romex connector

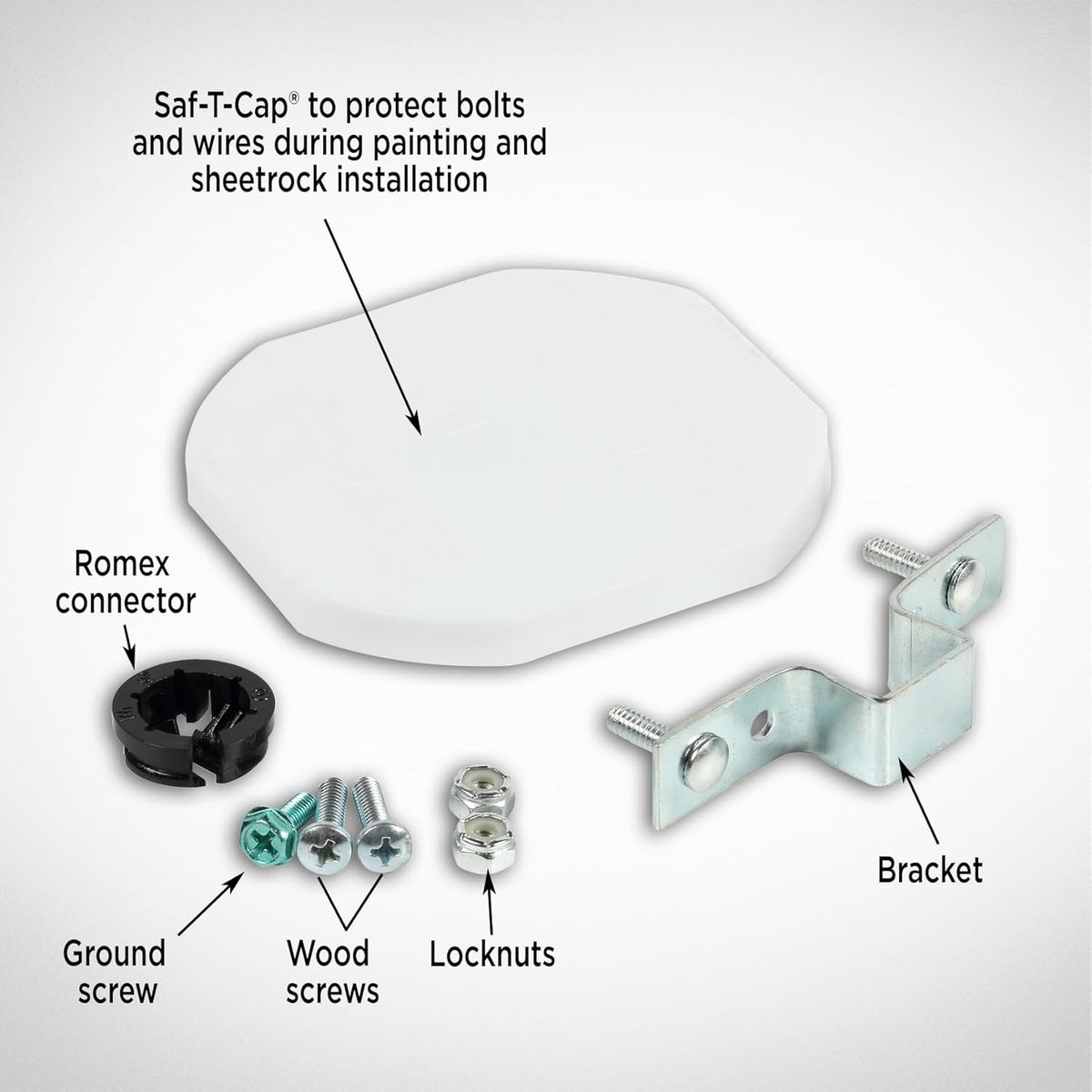

• Included: Brace electrical box Saf-T-Cap and hardware
• Included: Instructions
• Material: Metal
• Color: Silver
• Dimensions: 4 x 15 x 3 in
• Weight: 1.9 lb
