Heat Shrink Butt Connector Kit with 3:1 Adhesive-Lined Tubing for 24–10 AWG Automotive and Marine Wire
Heat Shrink Butt Connector Kit with 3:1 Adhesive-Lined Tubing for 24–10 AWG Automotive and Marine Wire
Heat shrink butt connectors form dependable inline wire splices for boat consoles, bilge pumps, vehicle harnesses, trailers, outdoor speakers and home circuits. A seamless tinned-copper barrel grips the conductor without splitting, supporting efficient current flow and a strong mechanical connection after a proper crimp.
Dual-wall polyolefin tubing shrinks at a 3:1 ratio as its adhesive lining melts around the cable entries, helping seal out moisture and reduce corrosion. Color-coded sizes cover 24–22 through 12–10 AWG wire, with mixed and single-size packs from 60 to 600 pieces; the featured mixed 100-piece kit covers red, blue and yellow connector sizes.
Specifications
- Product: heat shrink butt connector kit
- Featured quantity: 100 pieces

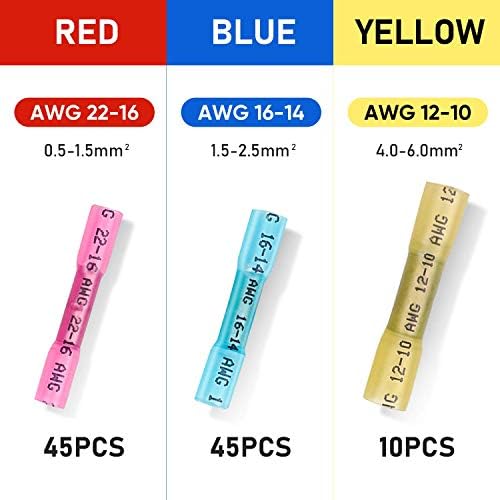

- Featured assortment: mixed red, blue and yellow sizes

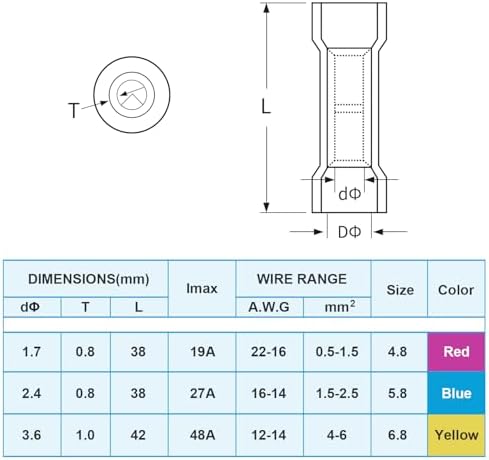

- Wire ranges: white 24–22 AWG, red 22–16 AWG, blue 16–14 AWG, black 14–12 AWG and yellow 12–10 AWG
- Pack options: 60, 100, 120, 200, 240, 300, 360, 400, 560 and 600 pieces depending on variant
- Connector type: crimp butt terminal

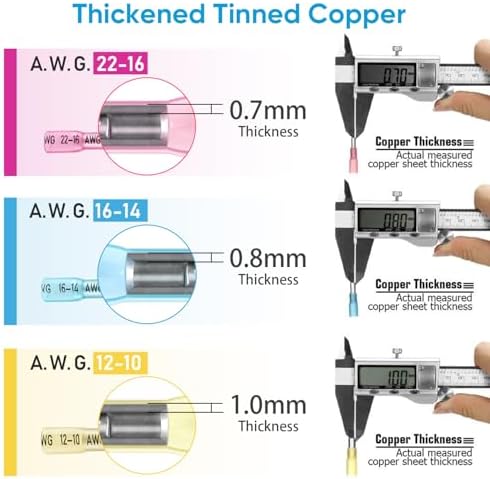

- Barrel material: seamless tinned copper

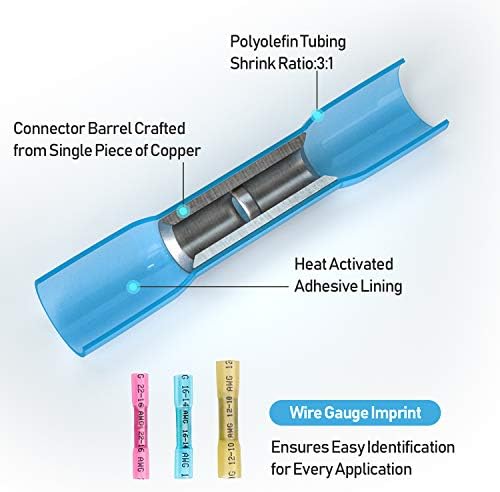

- Insulation: dual-wall polyolefin tubing
- Shrink ratio: 3:1
- Seal: heat-activated adhesive lining
- Minimum listed shrink temperature: 175 degrees Fahrenheit
- Listed standard: CE
- Uses: marine, automotive, trailer, outdoor speaker, home and underground-conduit wiring
- Brand: TICONN
- Model: TICONN-174
Frequently Asked Questions
Which wire gauges are covered by the connector options?
The listed color-coded sizes span white 24–22 AWG, red 22–16, blue 16–14, black 14–12 and yellow 12–10 AWG.
How does the 3:1 tubing seal the splice?

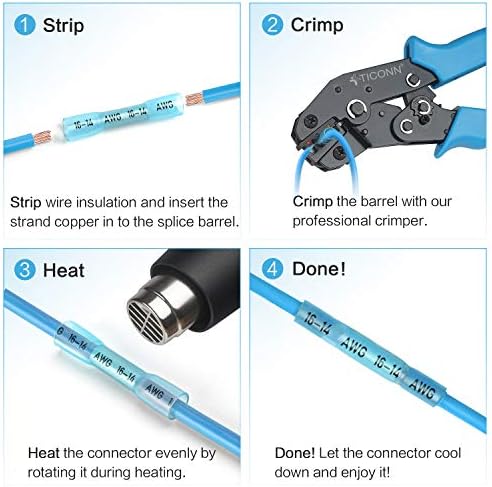

After crimping, controlled heat shrinks the dual-wall tube while melting its adhesive lining around the wire insulation to help block moisture at both ends.
What is included in the featured 100-piece kit?
The featured mixed kit contains red, blue and yellow heat shrink butt connectors. Other variants offer mixed or single-size packs in several quantities.
What projects suit these heat shrink connectors?
They are designed for compatible boat, vehicle, trailer, outdoor speaker, household and underground-conduit connections when the gauge and installation conditions match.
