Solar Panel DC Disconnect Switch, 400V or 1000V IP65 Breaker with 10-60 Amp Current Options and Connectors
Solar Panel DC Disconnect Switch, 400V or 1000V IP65 Breaker with 10-60 Amp Current Options and Connectors

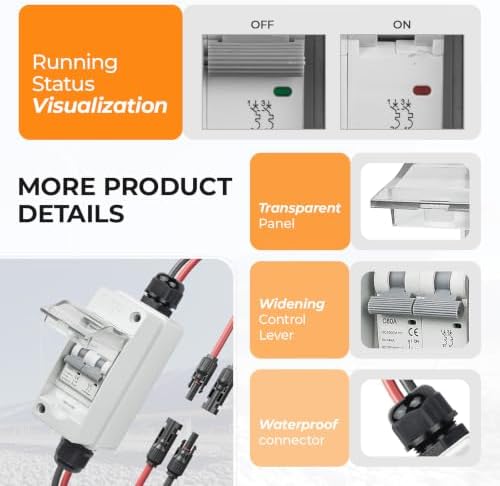

This solar panel DC disconnect switch provides a visible on-off isolation point between compatible photovoltaic panels and an inverter. Its enclosed breaker, wide operating handle and transparent cover help simplify status checks, while an IP65-rated enclosure and sealing ring support protected indoor or outdoor placement in home, RV and off-grid solar systems.

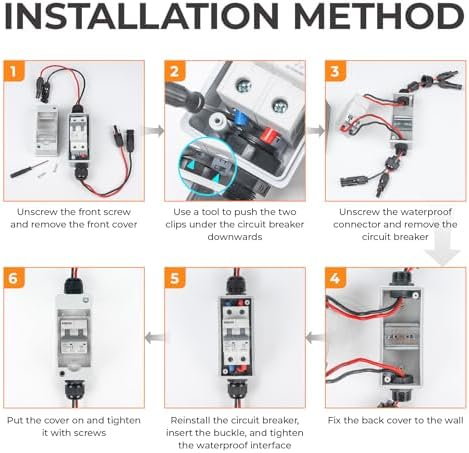

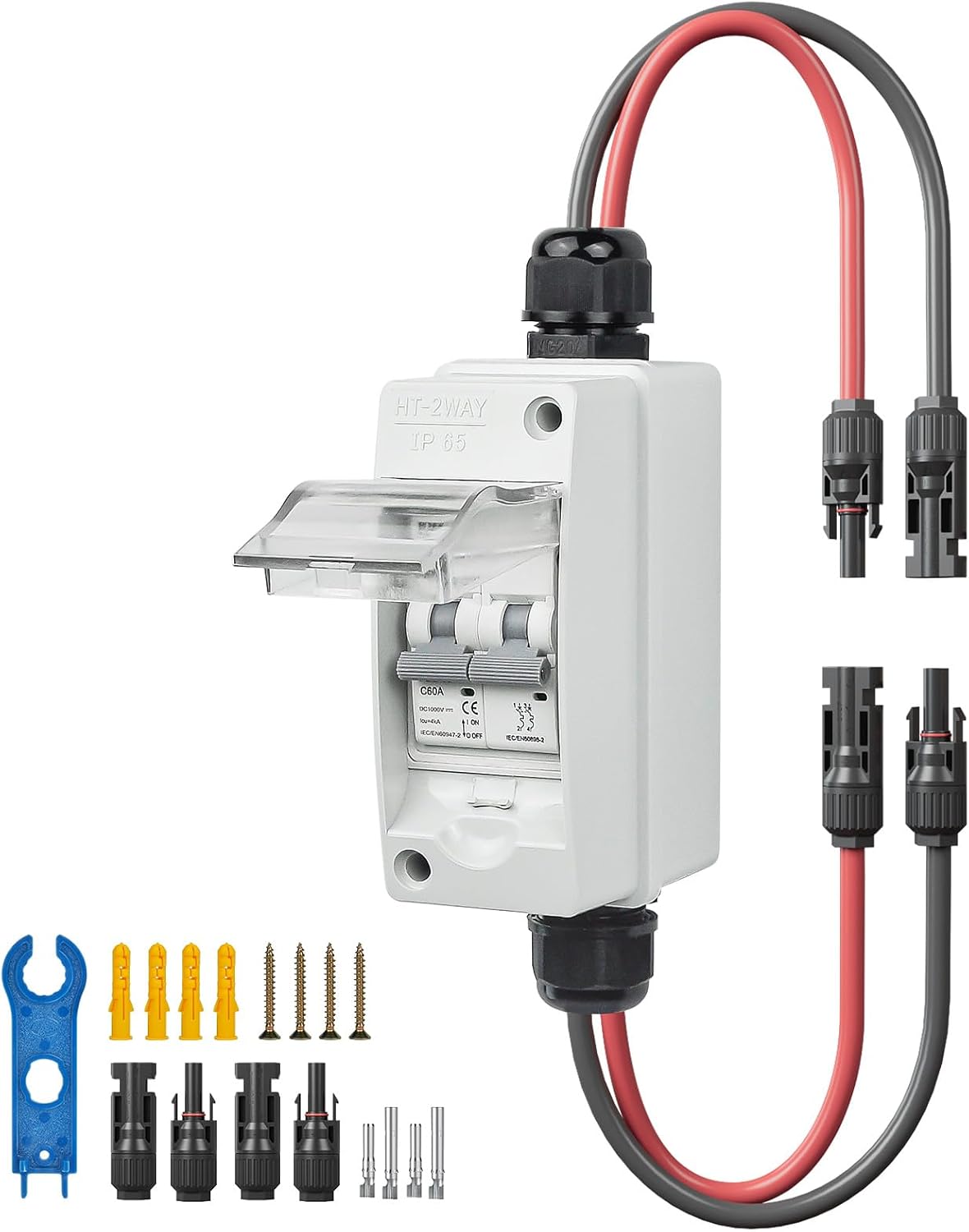

Choose 400V or 1000V DC configurations with listed current ratings from 10A to 60A. The system includes upper and lower waterproof connectors, internal 35mm guide rails and pre-drilled mounting holes for a compact installation. The documented package contains one disconnect breaker, two screws, four terminals, two solar connectors, a spanner wrench and a manual. Match voltage, current, conductor size, polarity and system design before installation by a qualified technician.
Specifications
- Device: Solar DC disconnect breaker
- Operation: On-off toggle
- Voltage options: 400V or 1000V DC
- Current options: 10A 16A 20A 25A 30A 40A 50A or 60A
- Enclosure rating: IP65
- Contact type: Normally open listed
- Terminal type: Screw
- Internal mounting: 35mm guide rail
- Connectors: Two waterproof solar connectors
- Package: Breaker screws terminals wrench and manual
Frequently Asked Questions
Where is this disconnect installed?
It is designed for a compatible DC run between solar panels and the inverter.
Which rating should I choose?
Select voltage and current ratings that meet the array design, conductors and protective-device requirements.
Can the enclosure be mounted outdoors?
The housing is IP65 rated for dust and water-jet resistance when installed and sealed correctly.
What comes with the switch?
The documented package includes the disconnect, two screws, four terminals, two solar connectors, a wrench and a manual.
