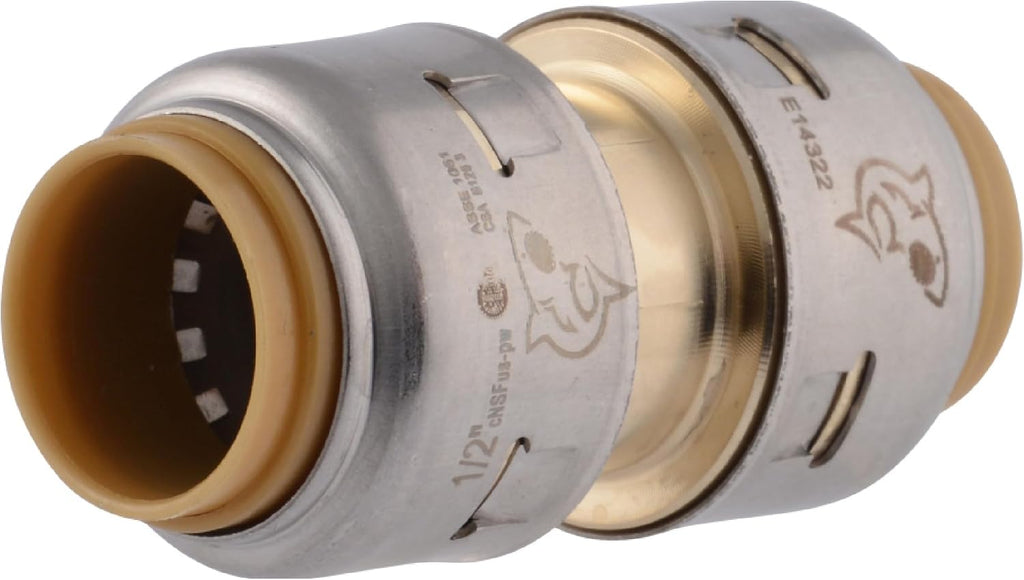

Push-to-Connect Brass Pipe Coupling for PEX, Copper, CPVC, PE-RT and HDPE in 1/2-1 Inch Sizes
Push-to-Connect Brass Pipe Coupling for PEX, Copper, CPVC, PE-RT and HDPE in 1/2-1 Inch Sizes
This push-to-connect brass pipe coupling joins two compatible pipe sections without solder, glue or a separate installation tool. It works across PEX, copper, CPVC, PE-RT and SDR-9 HDPE in any supported combination, making repairs and new residential or commercial plumbing connections faster, including on wet lines.

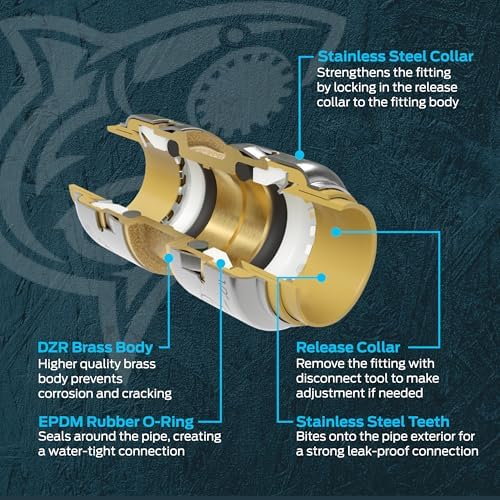

Choose a 1/2, 3/4 or 1-inch coupling in the available single or multipack configuration. Forged DZR brass, a reinforced stainless steel collar and a redesigned cartridge reduce insertion force while supporting a secure connection. The fitting is rated to 200°F and 400 PSI with a stated 2,000 PSI maximum burst rating. Prepare and deburr pipe ends according to installation requirements.
Specifications
- Connector type: Straight coupling
- Connection: Push to connect
- Materials: Forged DZR brass and stainless steel
- Pipe compatibility: PEX copper CPVC PE-RT and SDR-9 HDPE
- Sizes: 1/2 3/4 or 1 inch
- Pack options: Single and selected multipacks
- Temperature rating: Up to 200°F
- Pressure rating: Up to 400 PSI
- Maximum burst rating: 2000 PSI stated
- PEX tube liner: Not required
Frequently Asked Questions
Which pipe materials can this coupling join?
It connects compatible PEX, copper, CPVC, PE-RT and SDR-9 HDPE pipe in supported combinations.
Does installation require solder or glue?
No. The fitting uses a push-to-connect mechanism and can be installed without solder or adhesive.
Which sizes are available?
Choose 1/2, 3/4 or 1 inch in the single or multipack variants shown.
What are the stated working limits?
The coupling is rated to 200°F and 400 PSI, with a stated maximum burst rating of 2,000 PSI.
