105-Degree Soft-Close Full-Overlay Cabinet Hinges with Adjustable Concealed Design in Multi-Packs

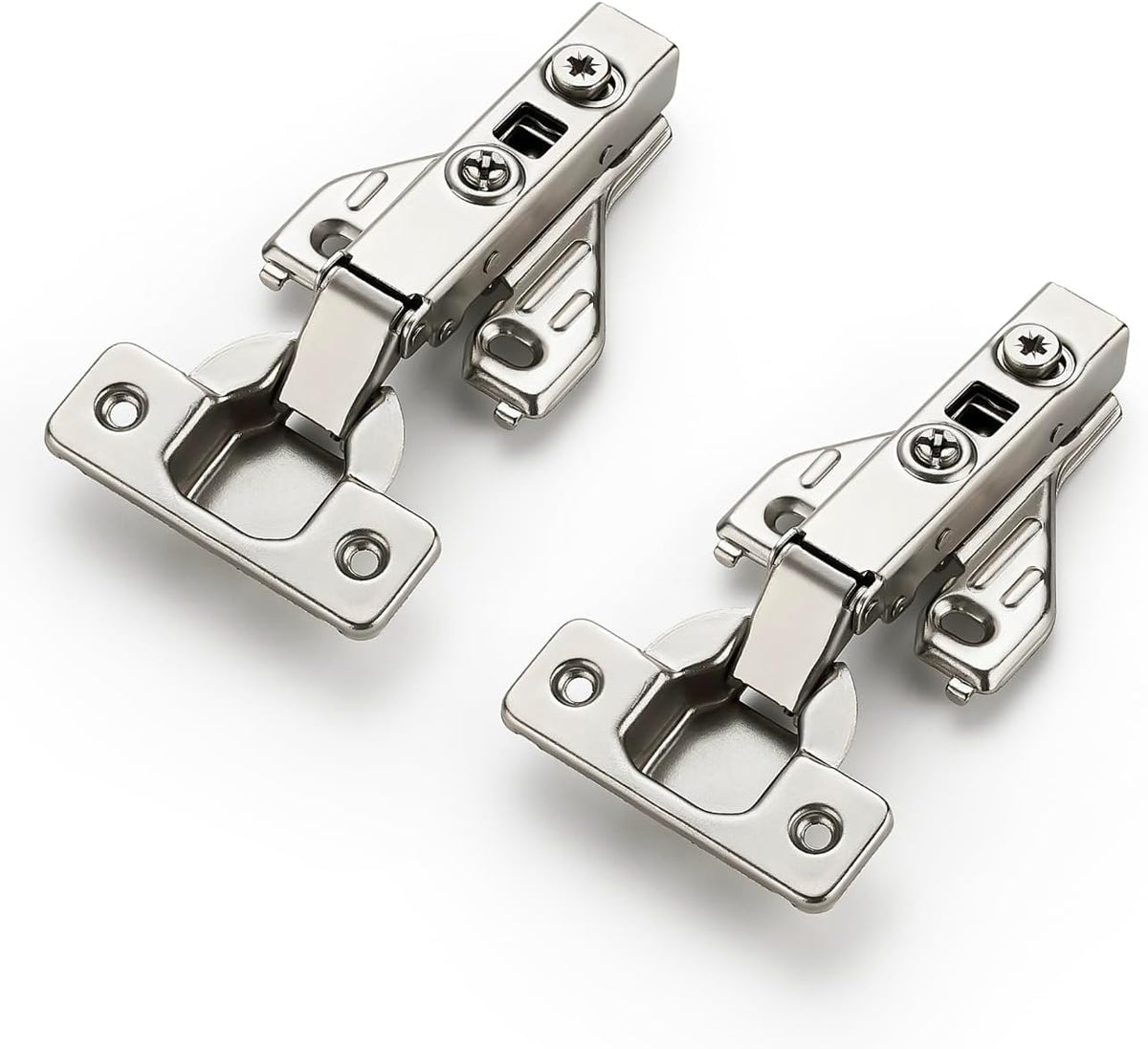

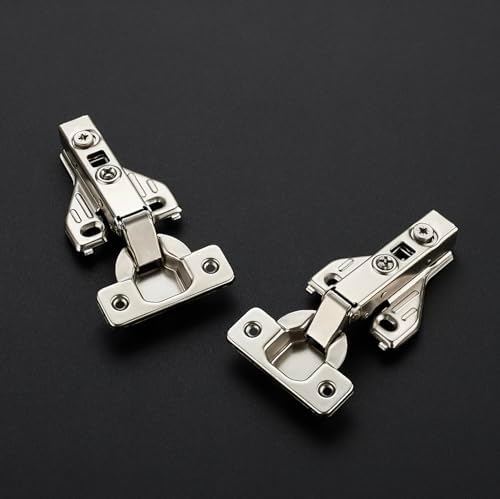

A soft-close full-overlay cabinet hinge gives face-frame doors a concealed mechanism that slows closing and reduces abrupt impact. Ravinte BZMSJL2 hinges use premium steel with a satin-nickel finish, four mounting holes, and an integrated damper for kitchens, bathrooms, and other compatible cabinets.

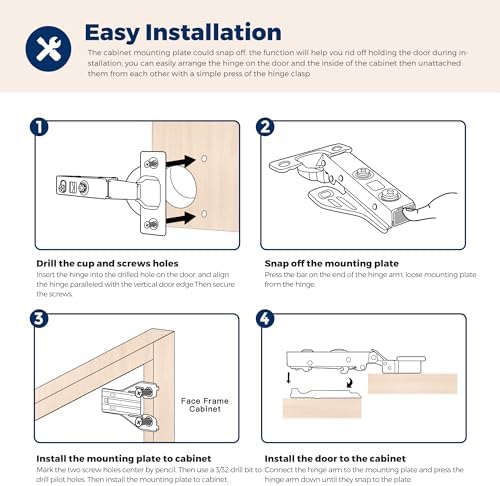

The door closes automatically and quietly when its angle falls below 30 degrees, while the hinge opens to a maximum of 105 degrees. Door-side screw holes are spaced 32 millimeters apart, with a listed 10-millimeter distance from the hole to the frame edge. Two adjustment screws change the door-seam gap by about two millimeters for alignment after installation. Each hinge includes four 15.5-millimeter mounting screws, and instructions are supplied. Recorded pack sizes are 2, 4, 10, 20, 30, 50, and 60 hinges. Select quantity by exact SKU, confirm that the cabinet construction and overlay geometry match this face-frame full-overlay style, and compare the drilling measurements before ordering. Mount and adjust pairs evenly, then test door clearance and soft-close action through the full swing.

Specifications

• Brand: Ravinte
• Model: BZMSJL2
• Product: Full-overlay concealed cabinet hinge
• Detailed quantity: 2 hinges or 1 pair
• Other quantities: 4 10 20 30 50 and 60
• Material: Premium steel
• Finish: Satin nickel

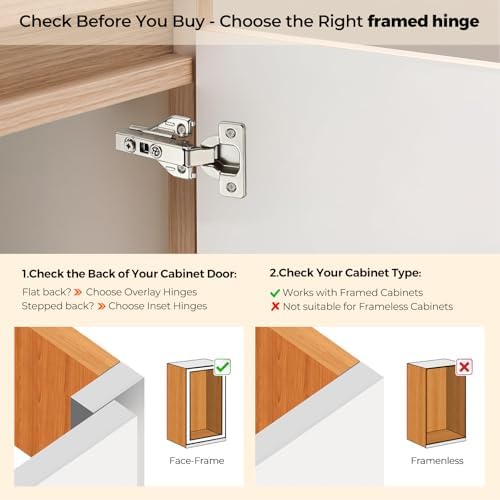

• Cabinet type: Compatible face-frame cabinet
• Overlay: Full overlay
• Opening angle: Up to 105 degrees

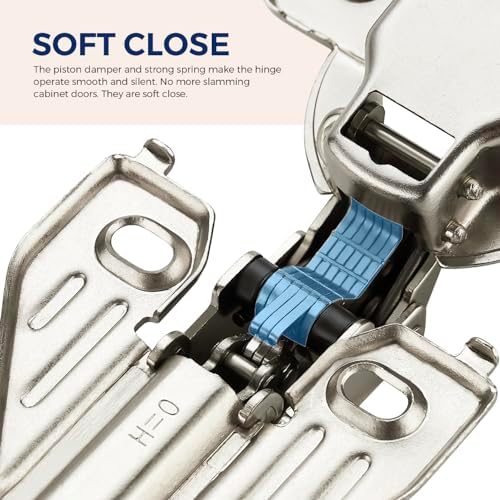

• Soft-close: Built-in damper
• Self-close threshold: Below 30 degrees
• Door screw-hole spacing: 32 mm
• Hole-to-frame-edge distance: 10 mm

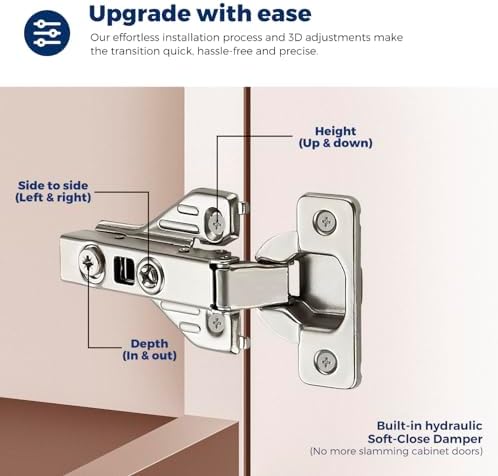

• Gap adjustment: About 2 mm
• Mounting holes per hinge: 4
• Screws per hinge: Four 15.5 mm screws
• Instructions: Included
