Portable Soldering Iron, 65W Smart Mini Tool with OLED Display, USB-C PD/QC and DC5525 Inputs - PINECIL

A portable soldering iron with flexible power inputs gives field technicians and makers precise temperature control without carrying a full station. This PINECIL smart mini iron uses a 32-bit RISC-V controller, adjustment buttons and a 0.69-inch OLED display. It reaches operating temperature in about 12 seconds, supports rapid boost and enters automatic standby when idle to reduce tip wear and power use.

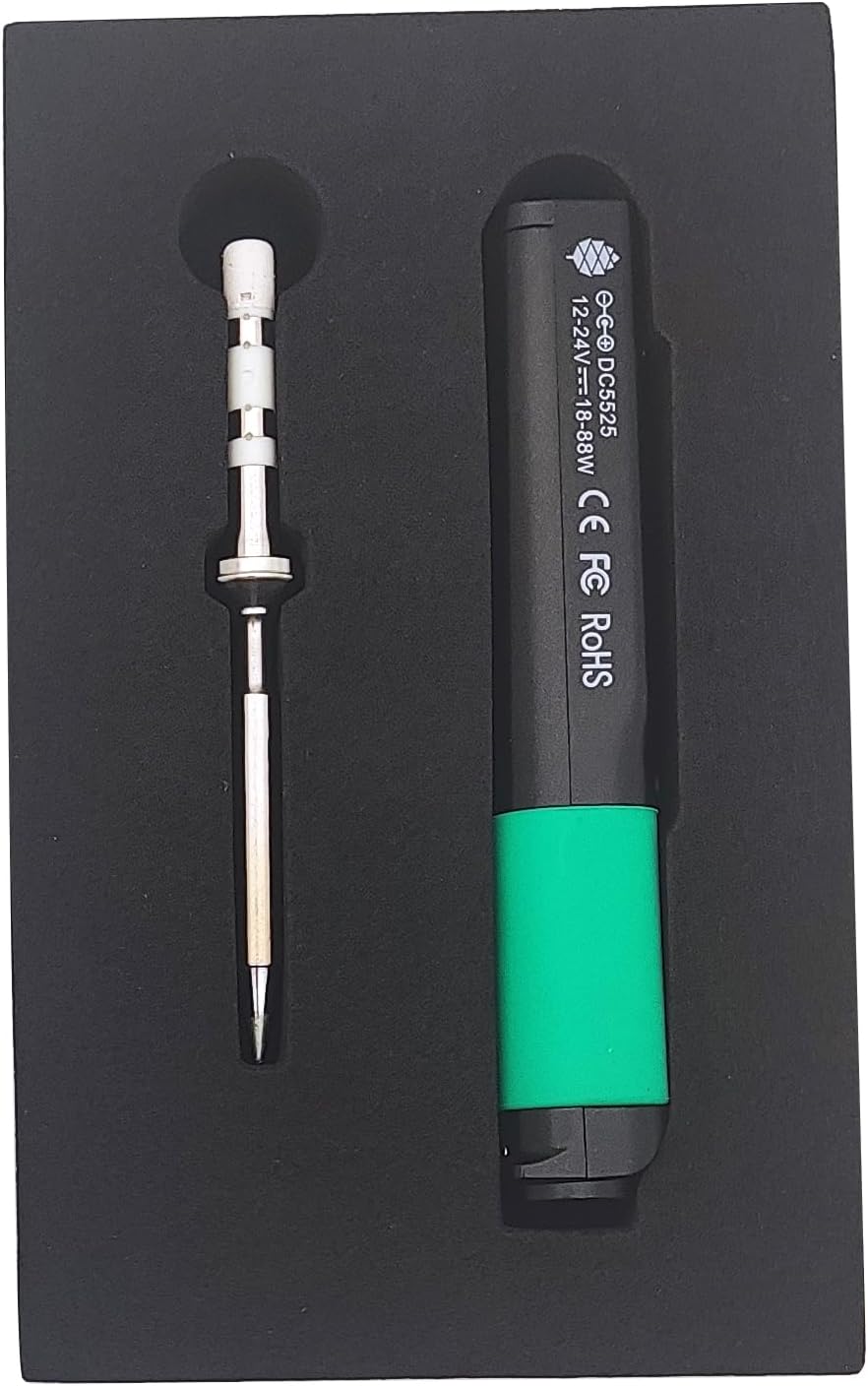

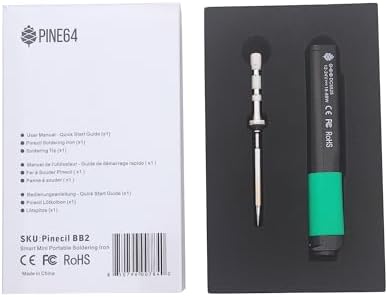

Power can come from USB-C PD or QC 3.0, or a DC5525 barrel input. The USB-C listing supports 12-20V at 3A and the barrel input 12-21V DC at 3A; a power supply is not included. The package contains the iron and a Type B2 tip. Temperature adjusts from 100°C to 400°C. Match the supply and cable to required power, use a safe stand and work with ventilation and eye protection.

Specifications

• Brand: PINECIL
• Product: Smart portable soldering iron
• Model: PINECIL-BB2
• Maximum power listing: 65W
• Temperature range: 100-400°C
• Warm-up claim: About 12 seconds
• Controller: 32-bit RISC-V
• Display: 0.69-inch OLED 96 x 16
• Power input: USB-C PD and QC 3.0
• USB-C range: 12-20V 3A listing

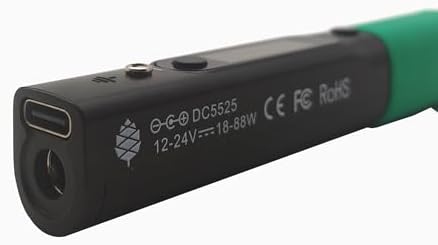

• Power input: DC5525 barrel jack
• DC range: 12-21V DC 3A listing

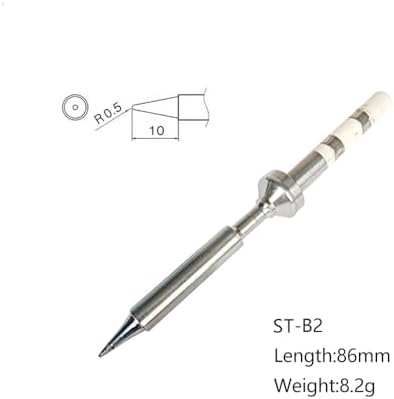

• Included tip: Type B2
• Included power supply: No
• Features: Rapid boost and auto standby

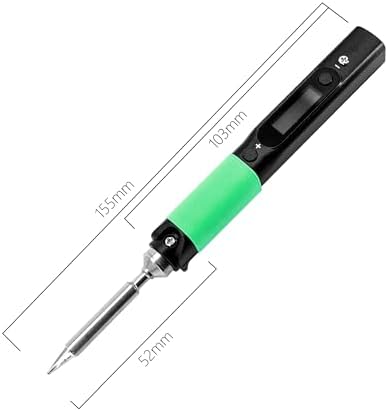

• Iron length: 6.1 inches
