Braided Clear PVC Tubing for High-Pressure Liquid and Air Transfer, 1/2-3/4 Inch ID Options
Braided Clear PVC Tubing for High-Pressure Liquid and Air Transfer, 1/2-3/4 Inch ID Options
This braided clear PVC tubing combines flexibility with fiber reinforcement for liquid, air, oil and fuel transfer in compatible industrial, agricultural, engineering, aquarium and drainage systems. The transparent wall helps users watch flow and buildup, while a smooth bore supports flushing and the braided layer limits stretching, kinks and abrasion.
Choose 1/2, 5/8 or 3/4-inch inside diameter in lengths from 10 to 164 feet. The documented 3/4-inch ID ten-foot option has a 2.5 mm wall, 0.95-inch OD, 200 PSI working pressure, 23°F to 149°F range and two hose clamps. Pressure, outside diameter and included parts may vary by configuration, so use the selected variant specifications.
Specifications
- Material: Braided clear PVC
- Inside diameters: 1/2 5/8 or 3/4 inch
- Lengths: 10 16.4 25 50 98 or 164 feet by variant
- Reinforcement: Fiber cords in tube wall

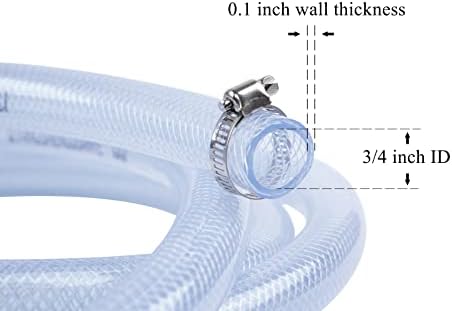

- Documented size: 3/4-inch ID × 0.95-inch OD
- Documented wall thickness: 2.5 mm
- Documented pressure: 200 PSI
- Temperature range: 23°F to 149°F

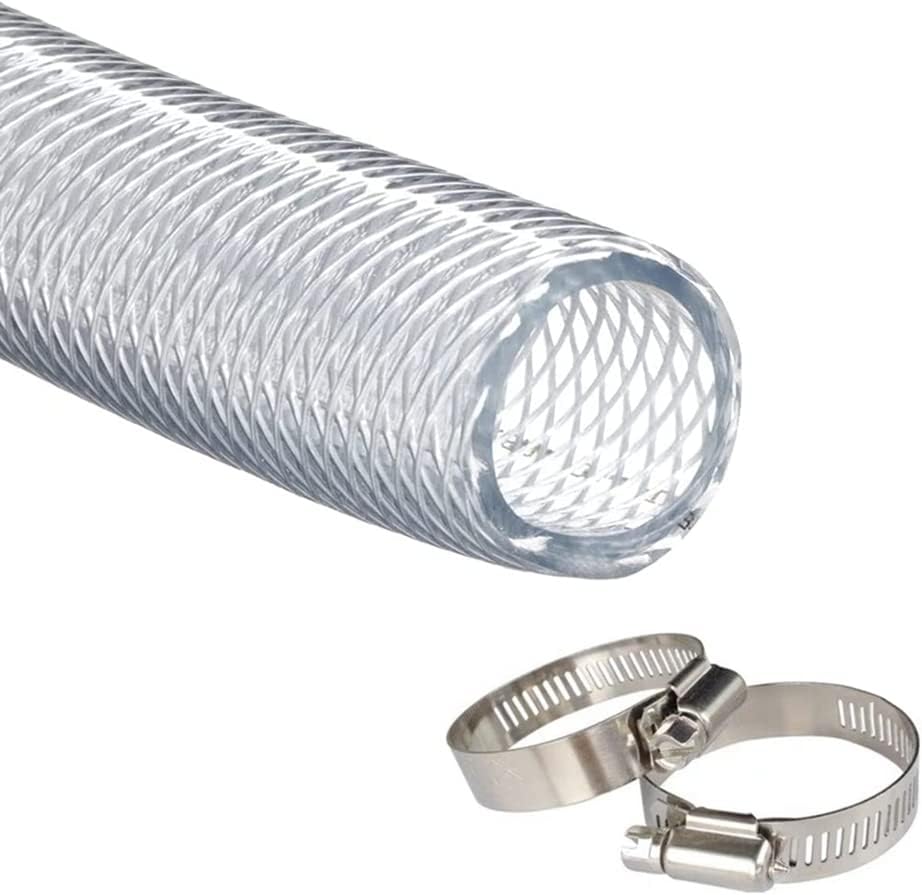

- Documented extras: 2 hose clamps
- Uses: Compatible liquid air oil and fuel transfer
Frequently Asked Questions
Which diameters and lengths are available?
Select 1/2, 5/8 or 3/4-inch ID in the specific lengths listed from 10 to 164 feet.
Does every option have a 200 PSI rating?
The 200 PSI claim is documented for the 3/4-inch ID ten-foot option; check the chosen size before use.
Why is the PVC tubing braided?
Fiber cords reinforce the wall to improve tensile strength and limit expansion, kinking and abrasion.
Are hose clamps included?
Two clamps are documented with the 3/4-inch ID ten-foot variant; confirm contents for other configurations.
