Solder Seal Wire Connector Kit with Color-Coded Heat Shrink Butt Splices in 120 to 1,000-Piece Options
Solder Seal Wire Connector Kit with Color-Coded Heat Shrink Butt Splices in 120 to 1,000-Piece Options
Solder seal wire connectors join electrical conductors with solder, heat shrink and a hot-melt adhesive seal in one streamlined sleeve. The transparent polyolefin body lets you watch the solder flow, while color-coded ends and printed wire-gauge markings help you select the right size for automotive, marine and outdoor wiring repairs.

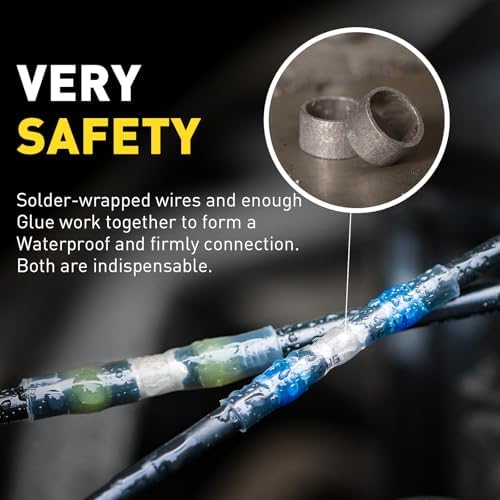

Heating the connector melts the solder around the stripped wires and activates adhesive at both ends, creating an insulated connection that resists moisture, abrasion, scuffing and light impact. The featured 120-piece kit includes four colors and sizes, with 180, 220, 260, 330, 350, 400 and 1,000-count assortments also listed for projects of different scale.

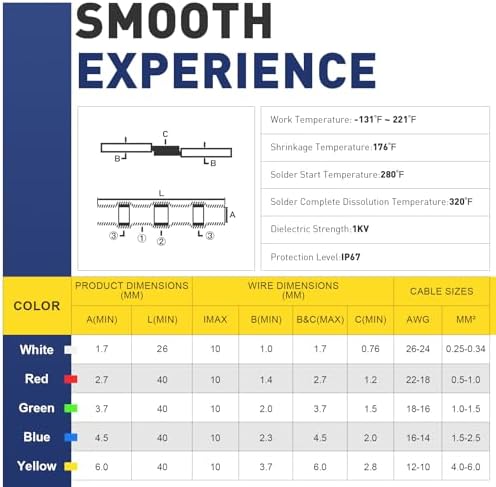

Specifications
- Product: solder seal wire connector kit

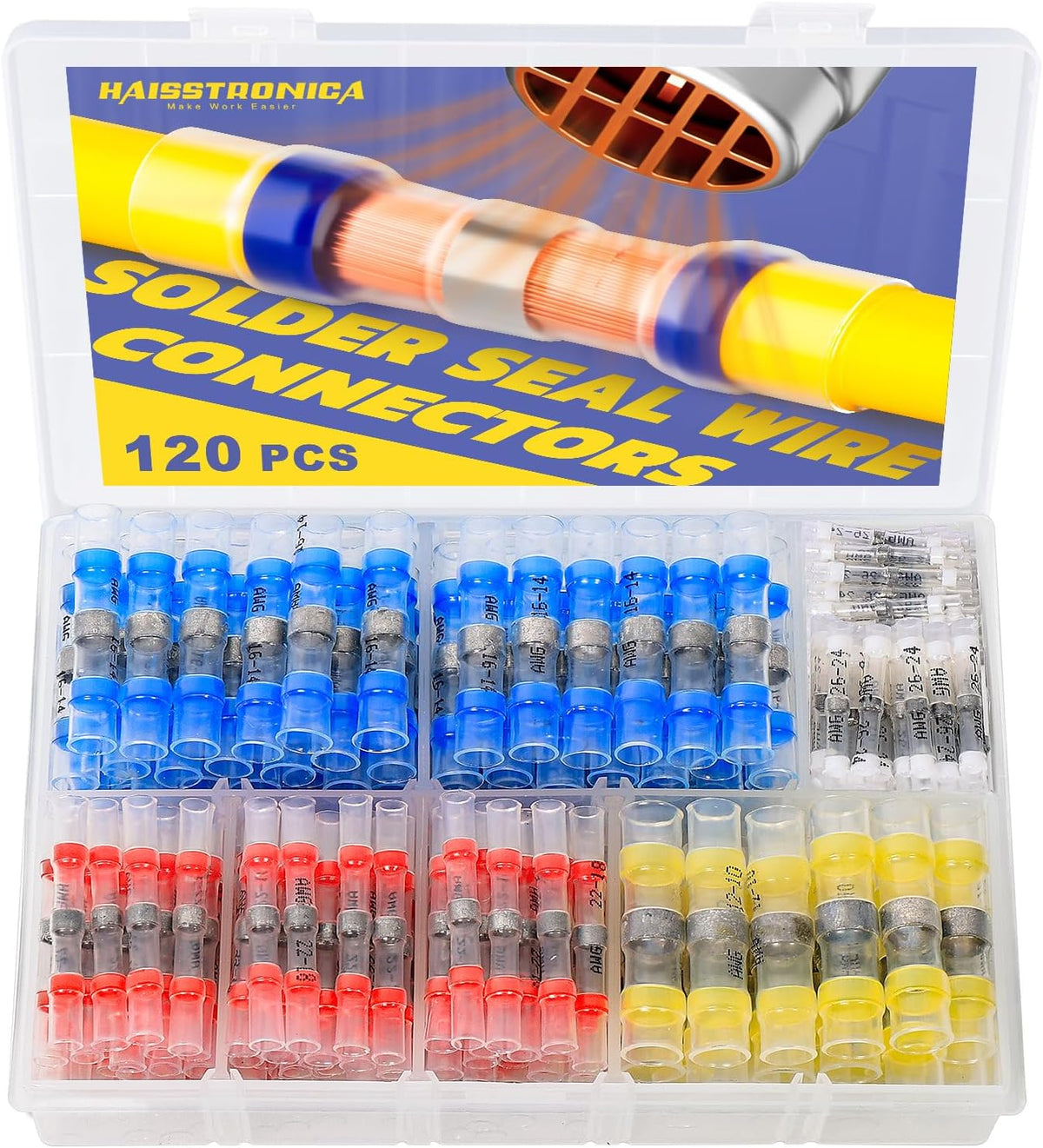

- Featured quantity: 120 connectors
- Other quantities: 180, 220, 260, 330, 350, 400 and 1,000 connectors
- Connector type: solder-seal butt splice
- Insulation: polyolefin heat shrink tubing
- Contact material: copper
- Seal: hot-melt adhesive at cable entries

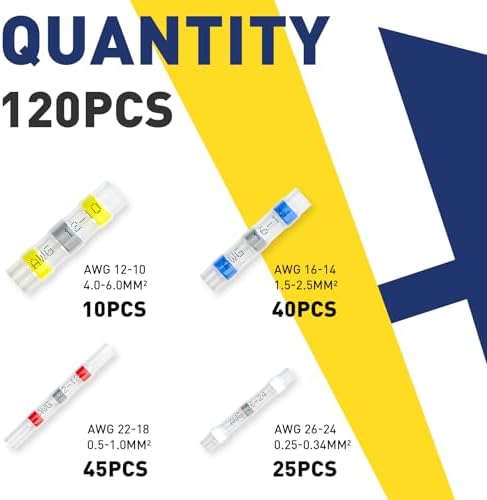

- Colors: white, red, blue and yellow
- Identification: wire gauge printed on tubing
- Maximum listed voltage: 24 V DC
- Temperature rating: 221 degrees Celsius
- Uses: automotive, marine, outdoor and general electrical wire connections
- Featured package dimensions: 5.28 x 4.02 x 1.18 inches
- Brand: haisstronica
- Model: HX1004
Frequently Asked Questions
How do solder seal wire connectors make a joint?

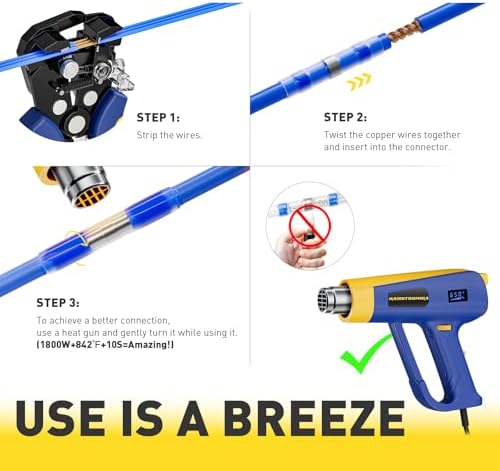

Insert stripped wire ends into the sleeve, overlap them beneath the solder ring and apply controlled heat until the solder flows and the tubing seals around both cables.
How can I choose the correct connector size?
Use the color and the wire-gauge marking printed on the polyolefin tube, then confirm the conductor fits securely before heating.
What protection does the sleeve provide?

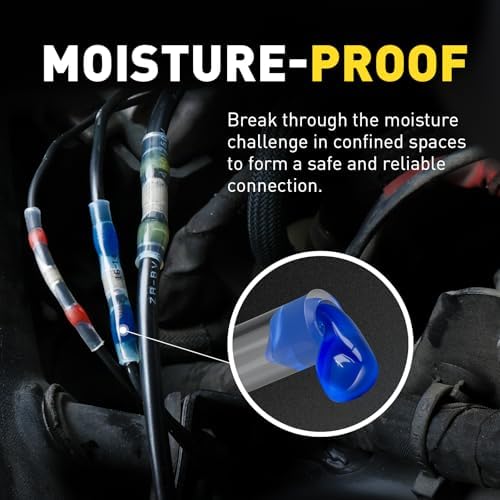

The heat shrink body and hot-melt adhesive seal the cable entries, helping protect a properly installed connection from moisture, abrasion, scuffing and light impact.
Which kit quantities are available?
Choose 120, 180, 220, 260, 330, 350, 400 or 1,000 connectors. The featured 120-piece assortment includes four color-coded sizes.
