Digital Angle Gauge with Magnetic Base, Backlit Reversible LCD and Absolute or Relative Measuring Modes – GemRed
Digital Angle Gauge with Magnetic Base, Backlit Reversible LCD and Absolute or Relative Measuring Modes – GemRed

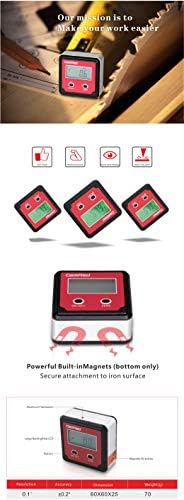

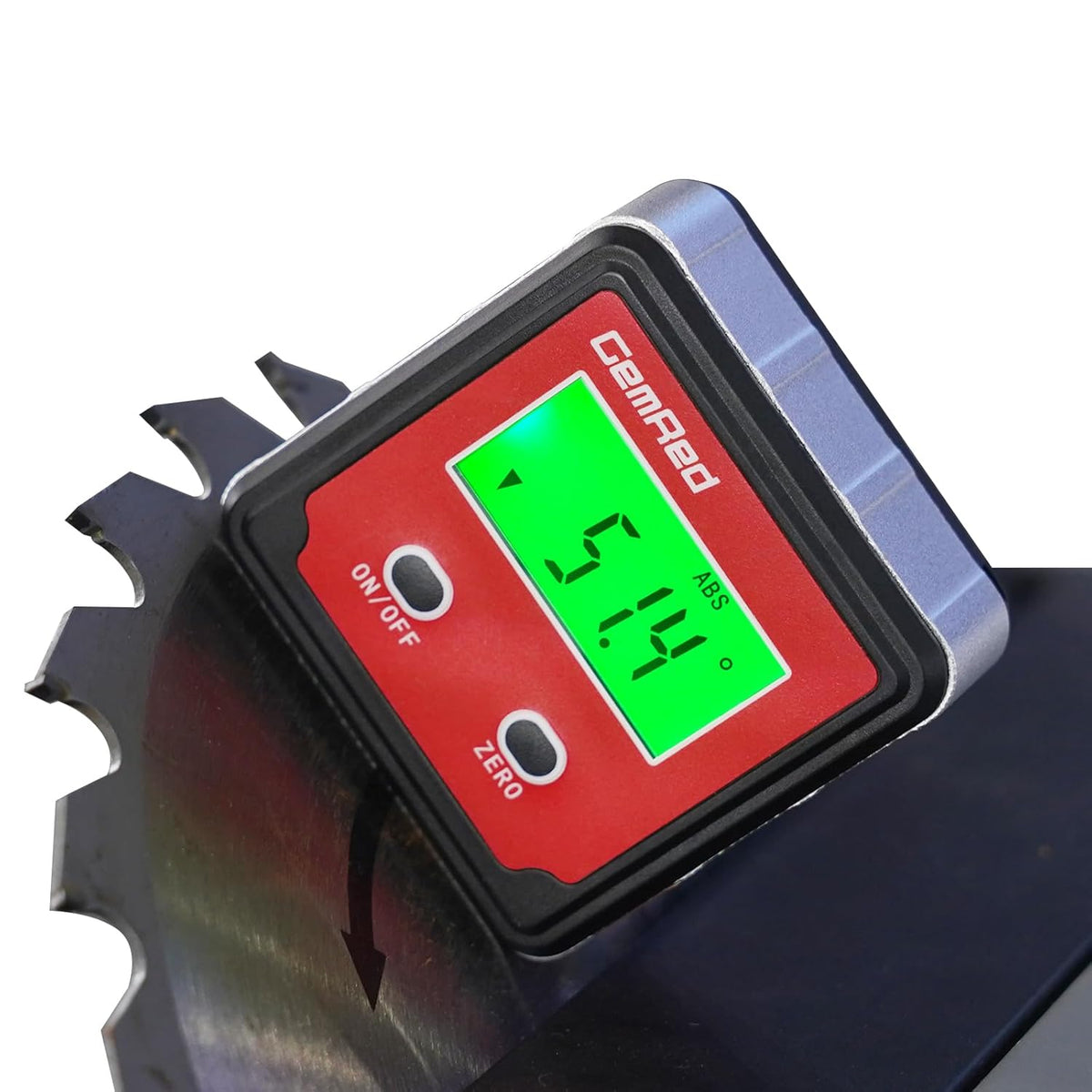

A digital angle gauge provides quick level and angle readings for table saws, miter saws, circular saws, lathes, milling setups, slopes and machinery alignment. GemRed DAG-V1 combines a compact aluminum frame with a magnetic flat base, helping the tool sit securely on compatible ferrous surfaces during setup and adjustment.

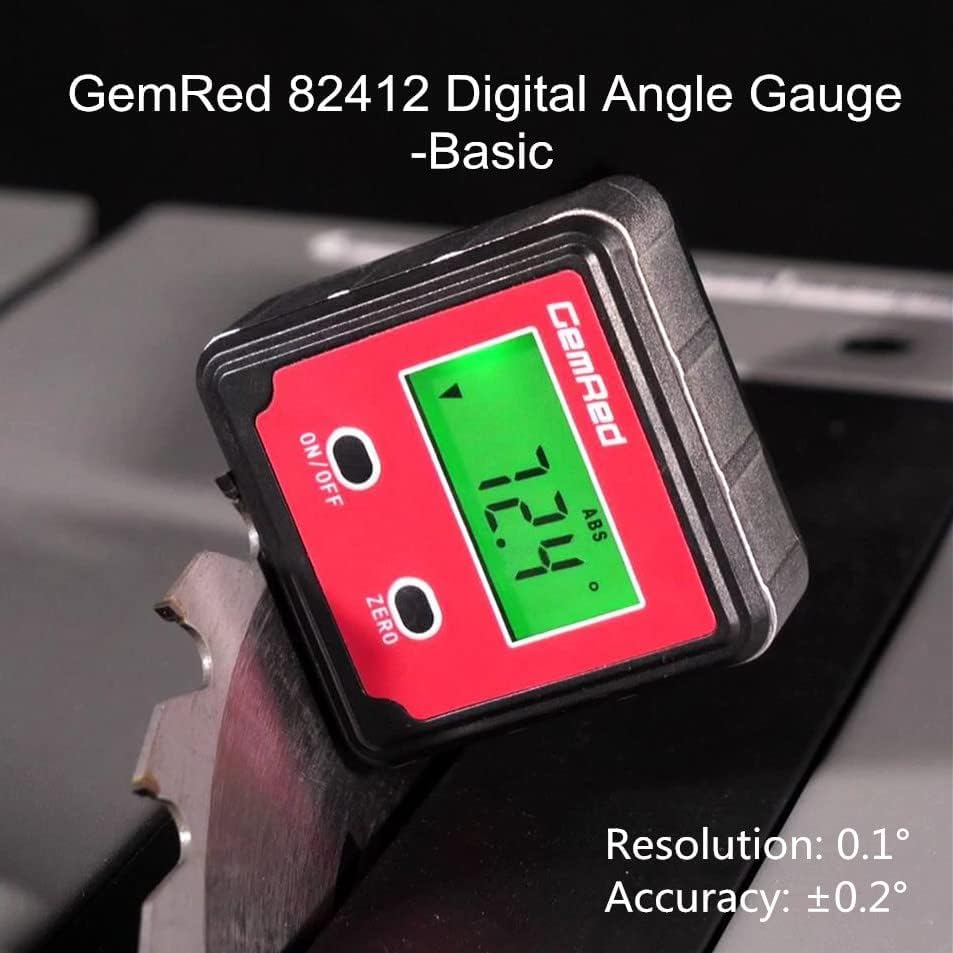

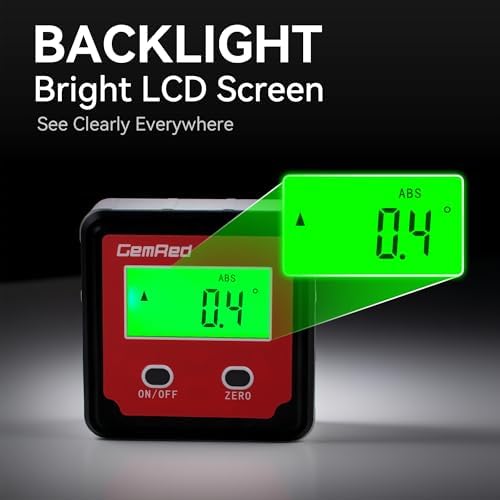

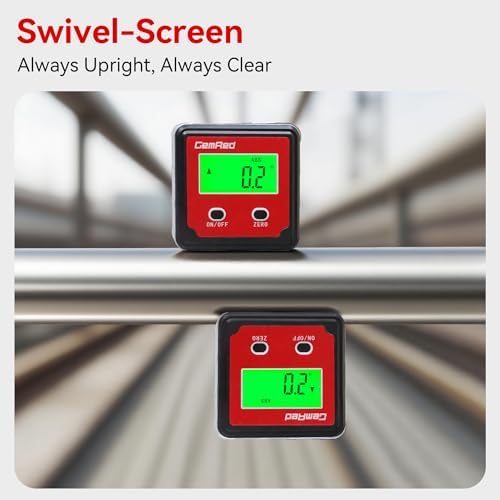

The gauge measures from 0 to 360 degrees across four 90-degree quadrants with 0.1-degree resolution and stated accuracy of plus or minus 0.2 degree. Switch between absolute level and relative-angle modes, and read the reversible LCD with its green backlight in dim work areas. An error indicator appears if the unit tilts diagonally beyond its supported position. One included AAA battery provides an average of 50 operating hours, and the gauge shuts off after five minutes. Use the magnetic bottom as the measurement base and keep contacting surfaces clean.

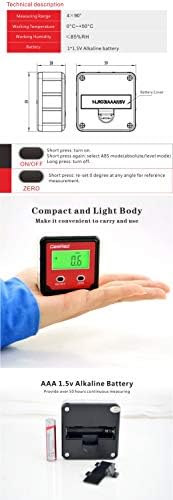

Specifications
- Product: Digital angle gauge
- Brand: GemRed
- Model: DAG-V1
- Measuring range: 0 to 360 degrees
- Resolution: 0.1 degree
- Accuracy: Plus or minus 0.2 degree
- Modes: Absolute level and relative angle
- Base: Magnetic flat bottom
- Display: Reversible backlit LCD
- Power: One included AAA battery
Frequently Asked Questions
What angle range can the gauge measure?
The GemRed digital angle gauge covers 0 to 360 degrees in four 90-degree quadrants.
Can it compare the angle between two surfaces?
Yes. Select relative-angle mode to compare one surface with another.
Why does the display show an error?
The error indicator warns that the gauge is tilted diagonally beyond its supported measurement position.
