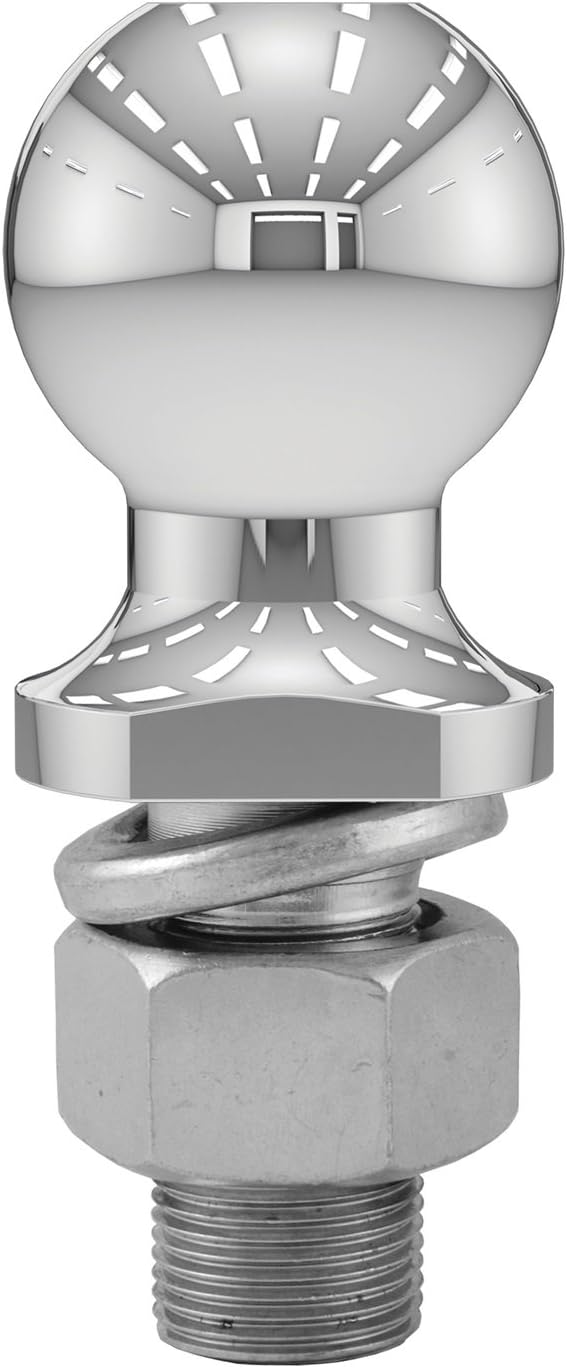

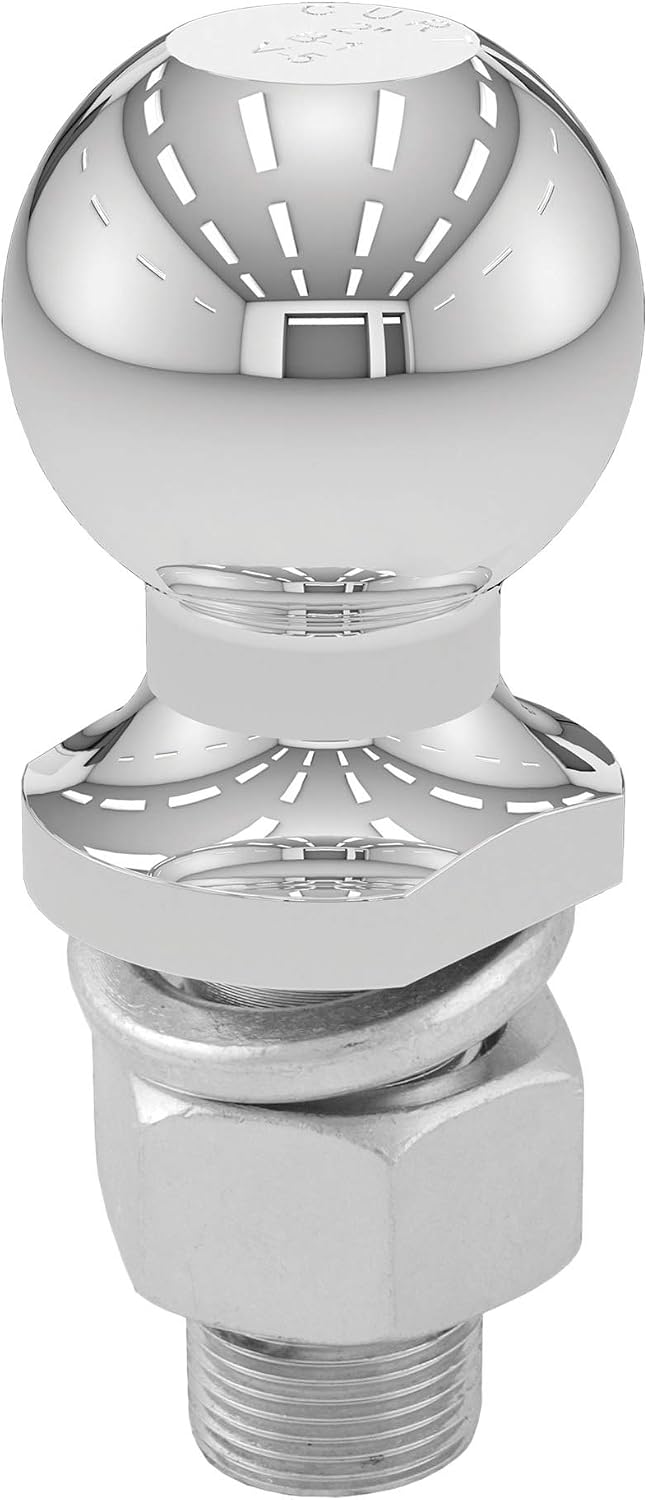

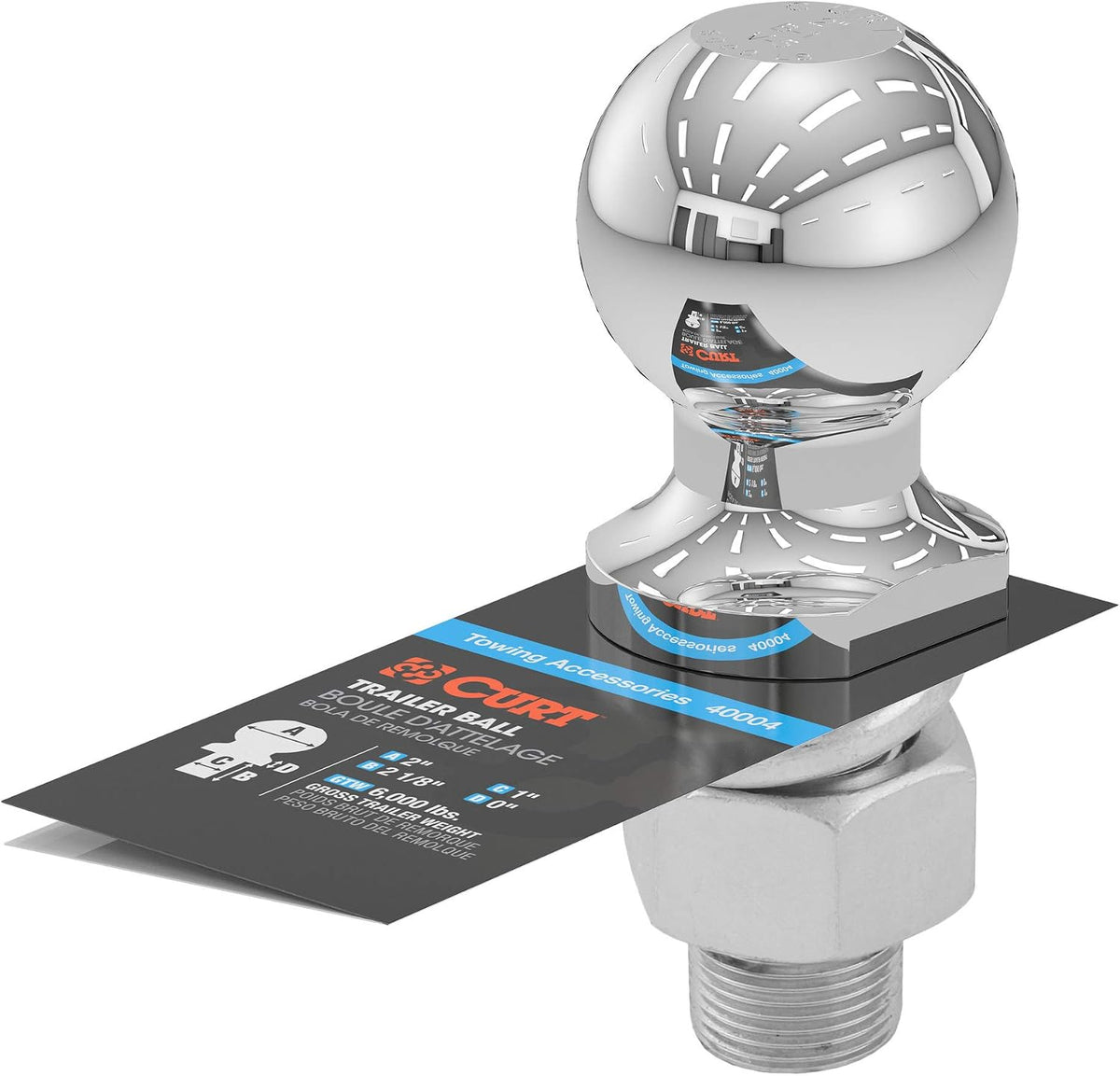

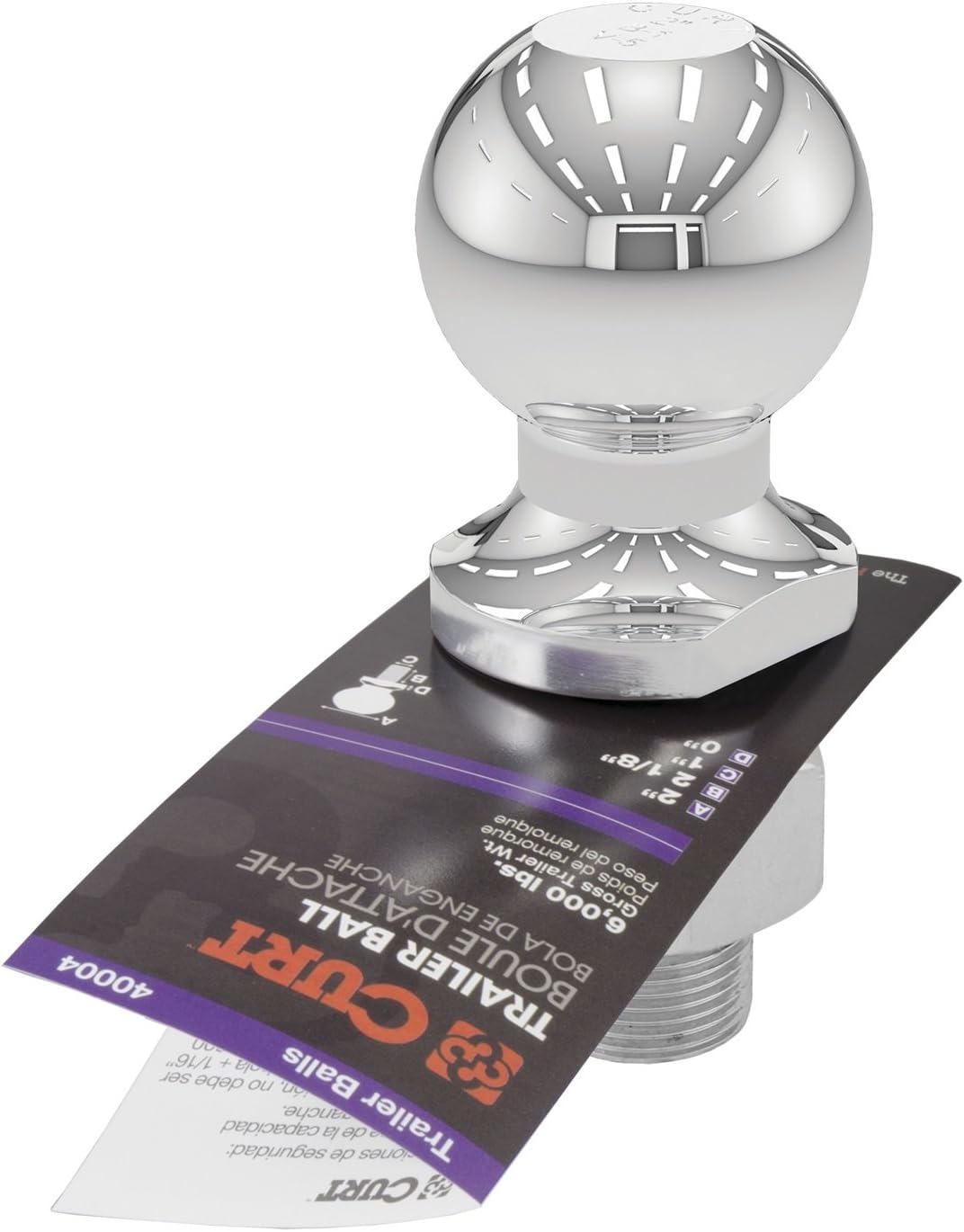

2-Inch Trailer Hitch Ball with 6,000 lb Rating and 1 x 2-1/8-Inch Shank – CURT 40004 Chrome
2-Inch Trailer Hitch Ball with 6,000 lb Rating and 1 x 2-1/8-Inch Shank – CURT 40004 Chrome
A 2-inch trailer hitch ball provides the coupling point between a compatible ball mount and trailer coupler. CURT 40004 is hot-forged from alloy steel and rated for up to 6,000 pounds gross trailer weight, supporting utility, boat, camper and recreational trailers within the complete towing system’s limits.

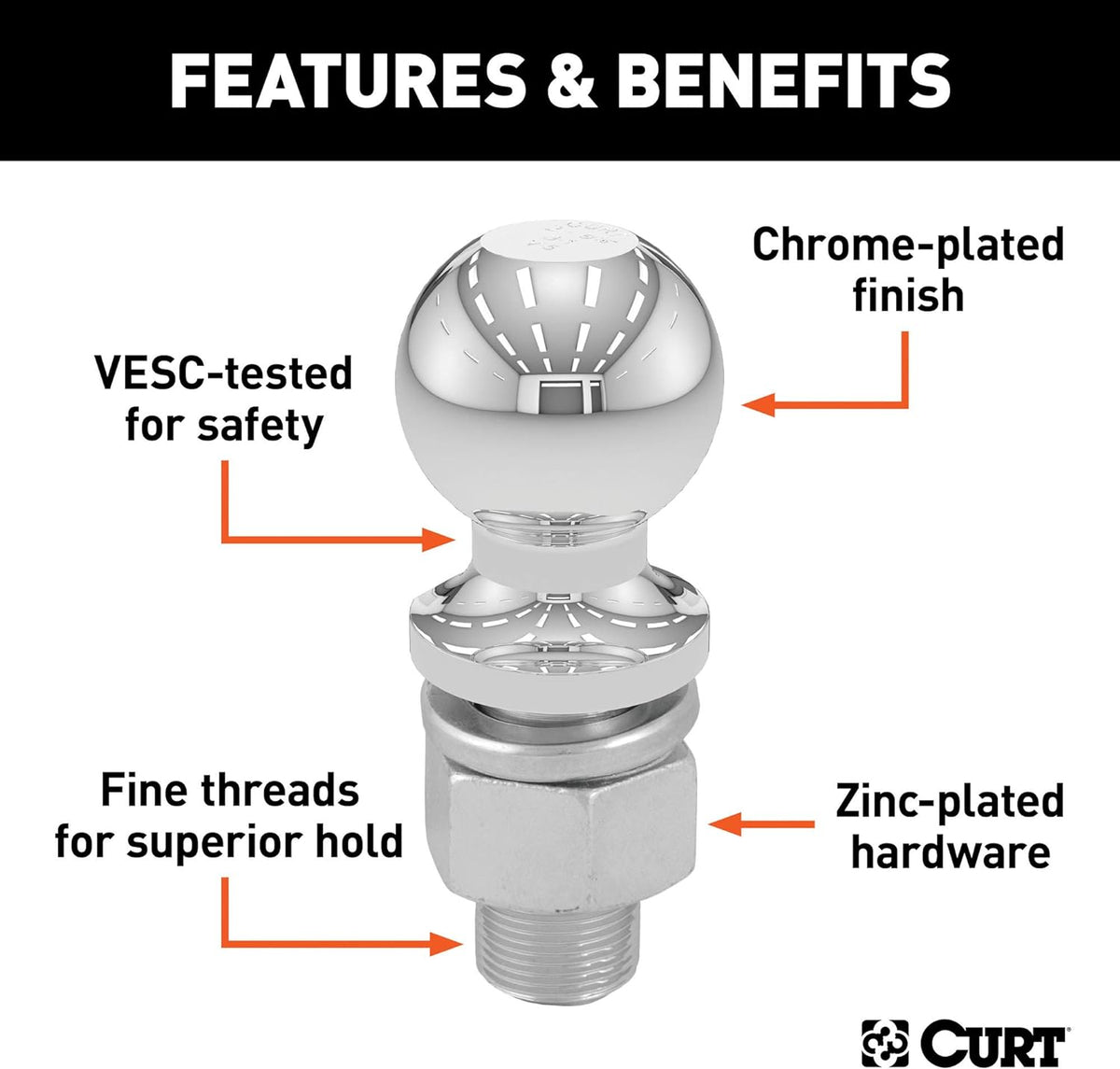

The fine-threaded shank measures 1 inch in diameter and 2 1/8 inches long, with a zinc-plated hex nut and helical lock washer included for installation. Chrome plating helps resist rain, road dirt, rust and scratching, while the zero-rise geometry keeps the ball centered on its mount. Fit it only to a 2-inch coupler and a mount with the correct shank hole and thickness. Tighten the nut to the documented 250 lb-ft and never exceed the lowest rated component among the tow vehicle, receiver, mount, ball, coupler and trailer.

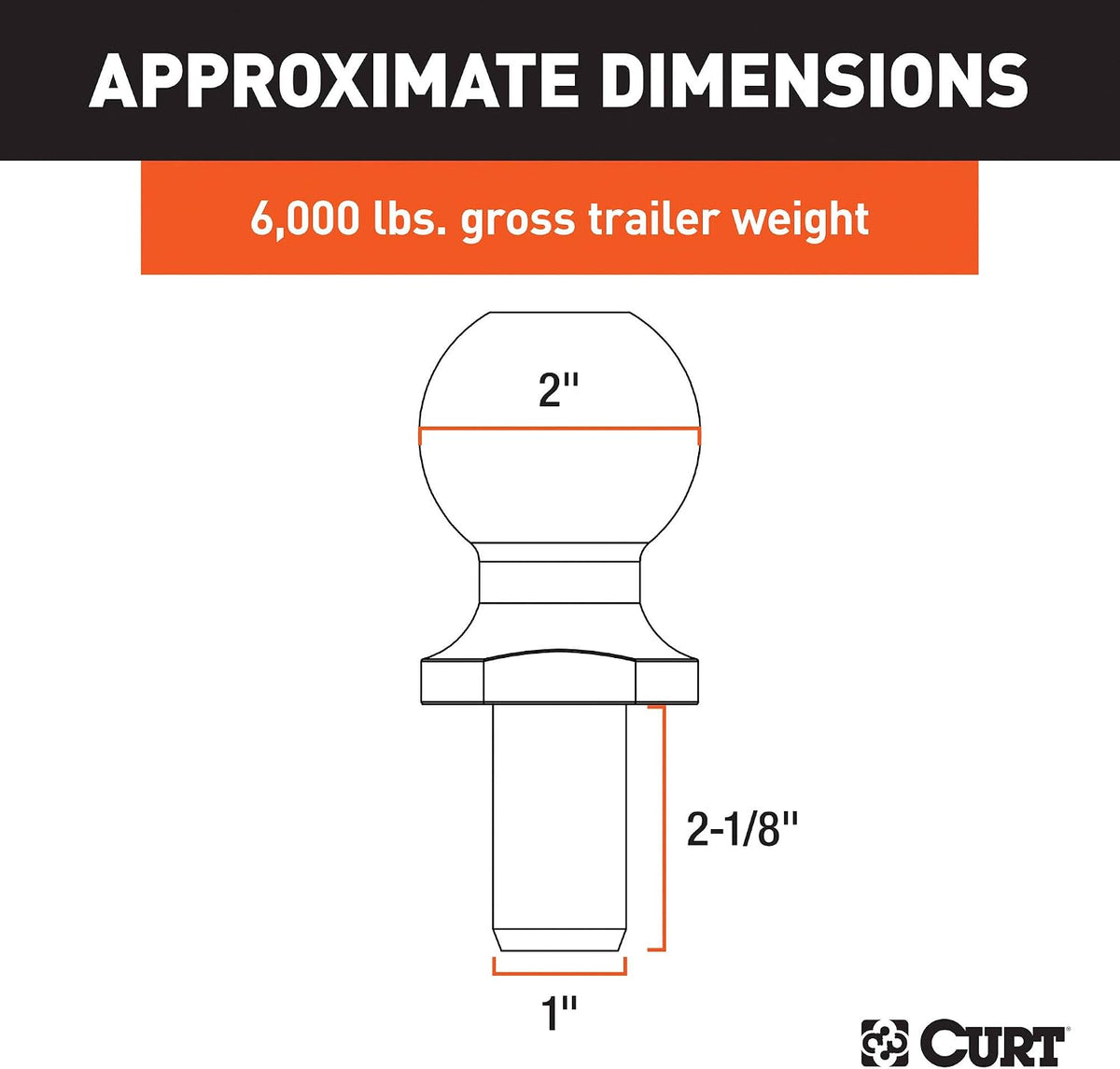

Specifications
- Brand: CURT
- Model and part: 40004
- Product: Trailer hitch ball
- Ball diameter: 2 in
- Maximum gross trailer weight: 6000 lb
- Shank diameter: 1 in
- Shank length: 2 1/8 in
- Rise: 0 in
- Material: Hot-forged alloy steel
- Finish: Chrome plating
- Thread: Fine threaded
- Installation torque: 250 lb-ft
- Included hardware: Zinc-plated hex nut and helical lock washer
- Standard tested: U.S. VESC specifications
- Item weight: 2.4 lb
Frequently Asked Questions
Which coupler size fits this hitch ball?
CURT 40004 uses a 2-inch ball and requires a compatible 2-inch trailer coupler.
What shank dimensions should the mount accept?
The mount must accept a 1-inch-diameter shank that is 2 1/8 inches long.
What towing limit applies?
The ball is rated to 6,000 pounds gross trailer weight, but the lowest rating anywhere in the towing system remains the limit.
