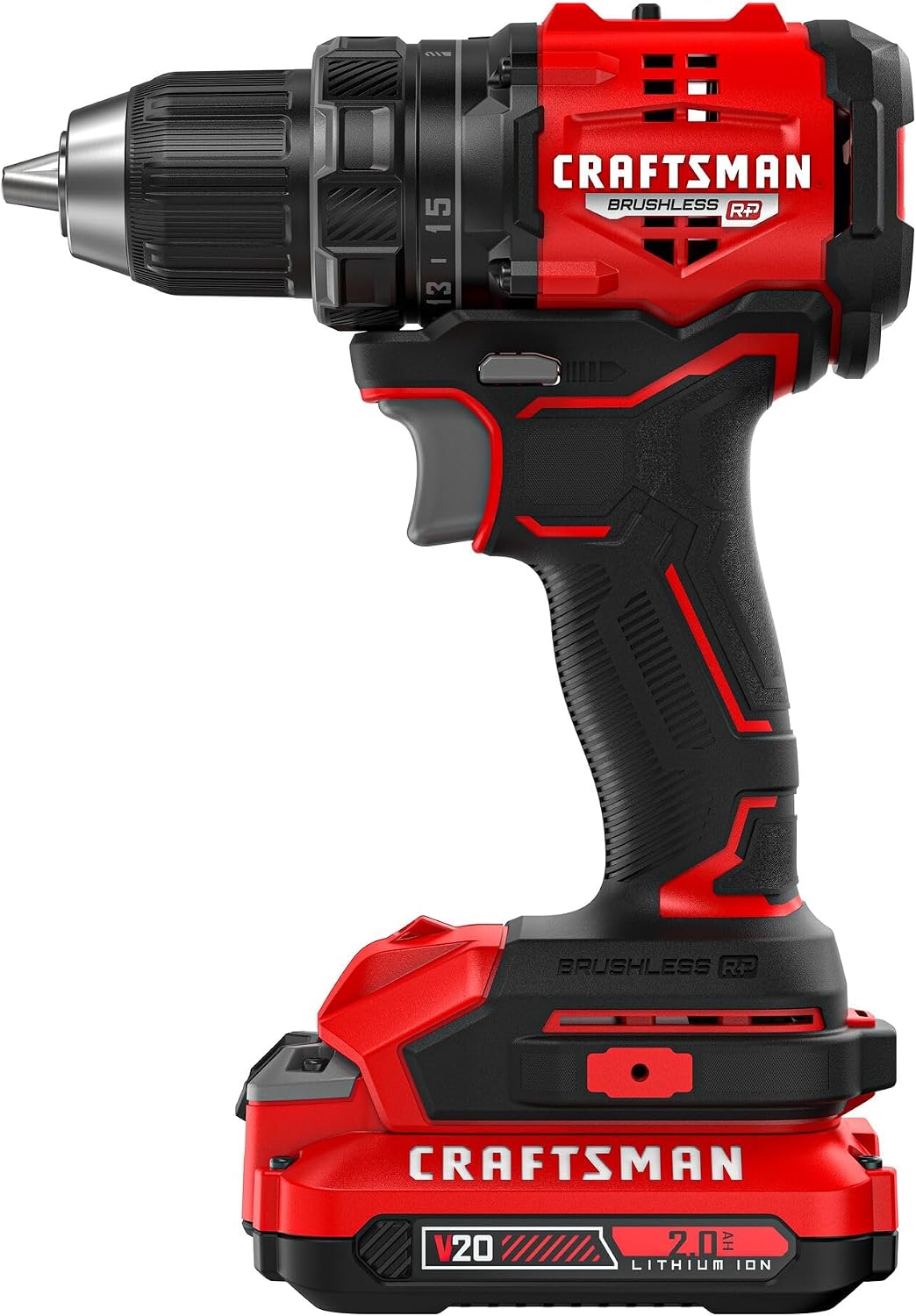

Compact Cordless Drill Driver Kit with 20V Battery, Brushless Motor and 2-Speed Trigger – CRAFTSMAN CMCD714D1
Compact Cordless Drill Driver Kit with 20V Battery, Brushless Motor and 2-Speed Trigger – CRAFTSMAN CMCD714D1
A compact cordless drill driver fits into cabinet openings, framing bays and other work areas where a longer tool head gets in the way. The CRAFTSMAN CMCD714 uses a 6.2-inch head and brushless motor, delivering drilling and fastening power through a two-speed transmission and variable trigger with up to 1,900 RPM.
Fifteen clutch positions plus drill mode help match force to screws and materials, while the half-inch chuck accepts compatible bits. An integrated LED directs light toward the work point, and VERSATRACK compatibility supports separate storage accessories. The CMCD714D1 kit includes one V20 2.0Ah lithium-ion battery and CMCB101 charger, providing a complete ready-to-charge drill package.
Specifications
- Brand: CRAFTSMAN
- Product: Compact cordless drill driver kit
- Kit model: CMCD714D1
- Tool model: CMCD714
- Voltage: V20 or 20V
- Motor: Brushless
- Tool head length: 6.2 in
- Transmission: 2 speed
- Maximum no-load speed: 1900 RPM
- Listed speed ranges: 0–600 and 0–1900 RPM

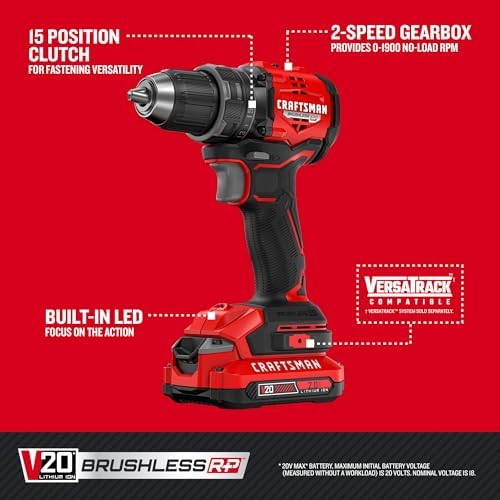

- Clutch: 15 positions plus drill mode
- Chuck size: 1/2 in or 12.7 mm
- Work light: Built-in LED
- Battery: CMCB202 2.0Ah lithium-ion
- Charger: CMCB101
- Storage system: VERSATRACK compatible
- Color: Black and red
Frequently Asked Questions

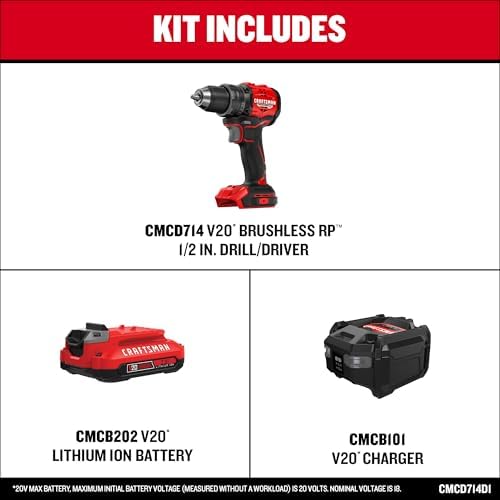

What comes in the CRAFTSMAN CMCD714D1 kit?
The kit includes the CMCD714 brushless drill driver, one V20 2.0Ah battery and a CMCB101 charger.
How compact is the drill head?
The CMCD714 tool head measures 6.2 inches long for access in tighter work areas.
What speed control does it provide?
A two-speed transmission and variable trigger provide ranges up to 600 or 1,900 RPM.
How does the clutch help with fastening?
Fifteen clutch settings let users limit force for screws, while the separate drill mode supports drilling.
