12V Diaphragm Sprayer Replacement Pump with 1–7 GPM Options, Self-Priming Choices and Slide-Lock Hoses - CHAPIN

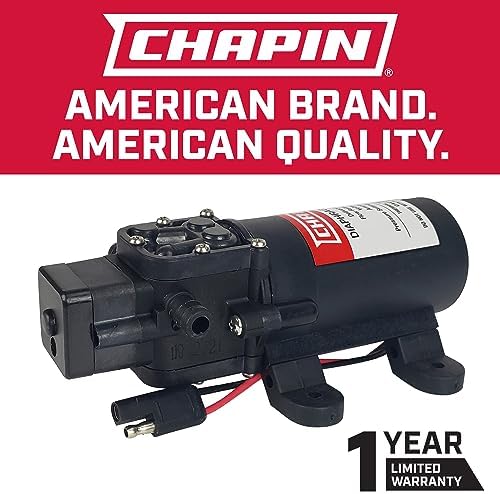

A 12V diaphragm sprayer replacement pump moves water or compatible lawn and cleaning liquids through ATV, UTV, marine and RV systems. The documented CHAPIN 6-9206 standard model delivers 1 GPM and up to 60 PSI, using chemical-resistant elastomer seals and a universal mounting base. Slide-lock hose connections simplify pump swaps, while an in-line fuse protects the circuit.

The storefront also offers 3, 4, 5 and 7 GPM self-priming models, which have different performance and may not share every documented specification. The source labels the 1 GPM version self-priming in one section but Standard in the variant name; verify priming behavior on the selected model. Use only a properly fused 12V supply despite one conflicting AC field, check liquid compatibility with seals and hoses, mount securely and flush the system according to the chemical manufacturer’s instructions after use.

Specifications

• Brand: CHAPIN
• Product: Diaphragm sprayer replacement pump

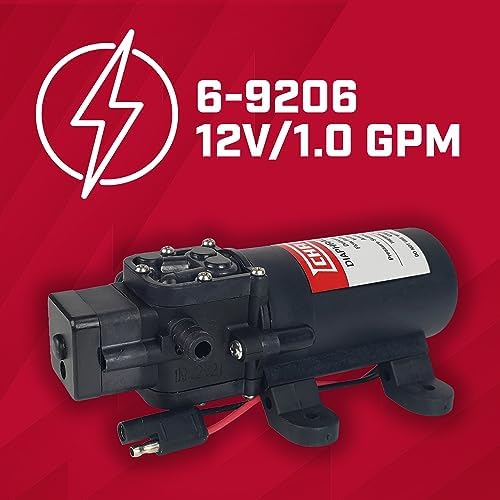

• Documented model: 6-9206
• Documented flow: 1 GPM
• Documented pressure: Up to 60 PSI
• Voltage: 12 V
• Power field conflict: One source field incorrectly lists AC
• Other flow options: 3 4 5 and 7 GPM
• Other option type: Self-priming
• Documented variant label: 1 GPM Standard
• Pump design: Diaphragm with no shaft seal to replace
• Seals: Chemical-resistant elastomer
• Connections: Slide-lock hose fittings
• Protection: In-line fuse
• Mount: Universal base for many ATV sprayers
• Dimensions: 7.2 x 4.3 x 2.7 inches
• Weight: 1 lb
• Included: Diaphragm pump
