A solar Y-branch connector kit combines photovoltaic panel leads in parallel without field-splicing cable. The base BougeRV pair includes one male-to-two-female branch and one female-to-two-male branch for connecting two panels, with built-in locks that click together during assembly.
The base connectors are documented for 14–10AWG cable, 20A current and 1000V DC. IP67 sealing rings, PPO insulation and resistance to ultraviolet exposure and heat support outdoor arrays. The listing includes branch layouts for two through six panel leads and single-, double- or four-pair quantities, so select the exact layout required by the array.
Specifications
- Brand: BougeRV
- Model: ISE002FBM
- Product: Solar Y-branch parallel connectors

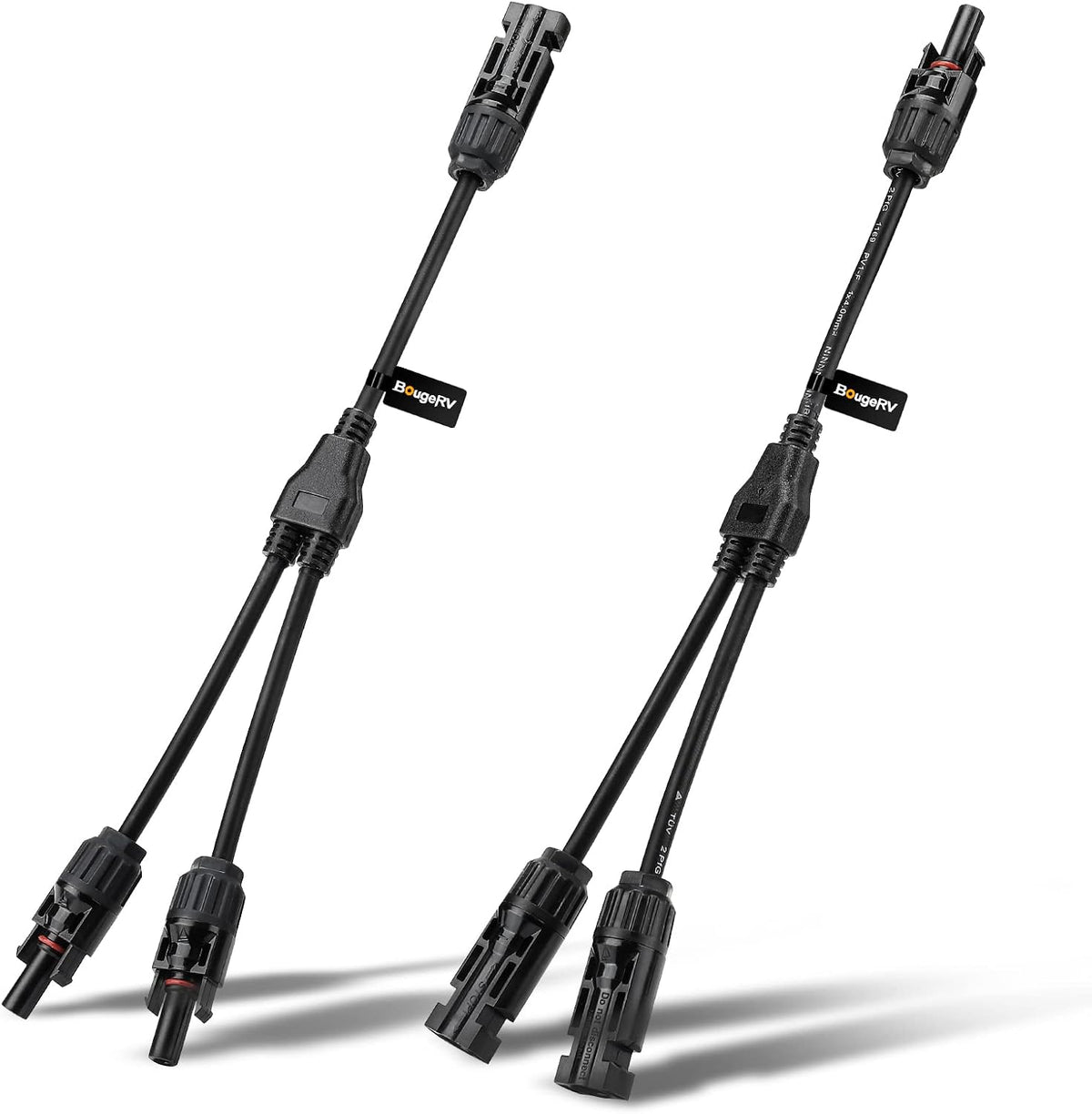

- Base layout: M/FF and F/MM

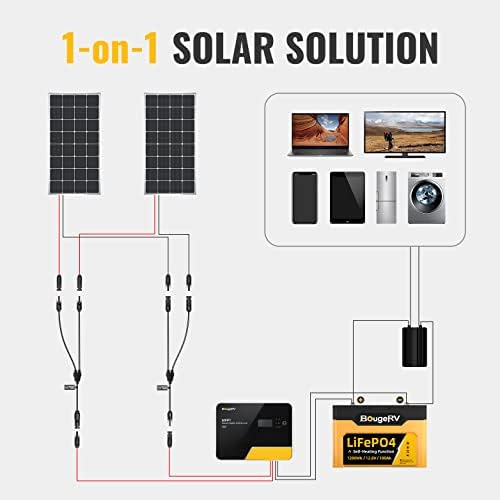

- Base use: Connect 2 solar panels in parallel

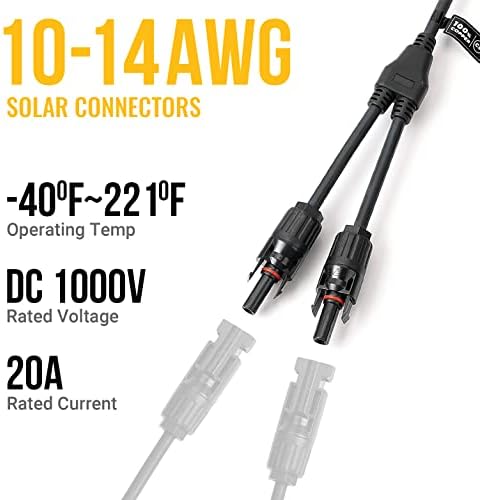

- Base rated current: 20A
- Base rated voltage: 1000V DC
- Cable compatibility: 14–10AWG / 1.5–6 mm²

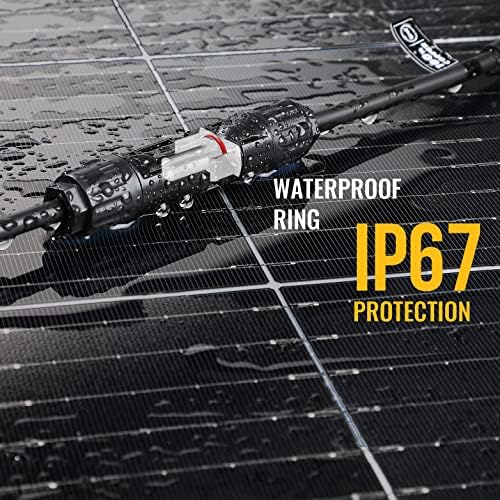

- Waterproof rating: IP67

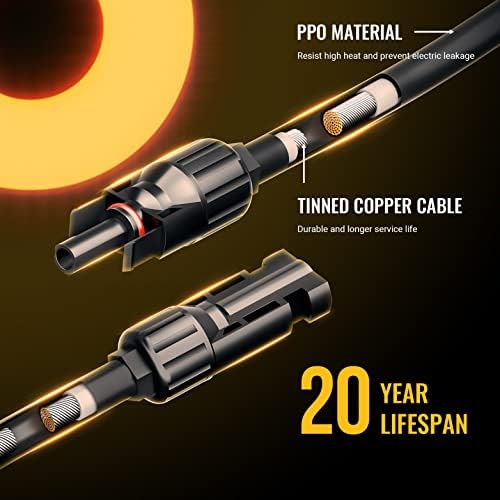

- Insulation: TPE and PPO
- Operating temperature stated: -40°F to 221°F

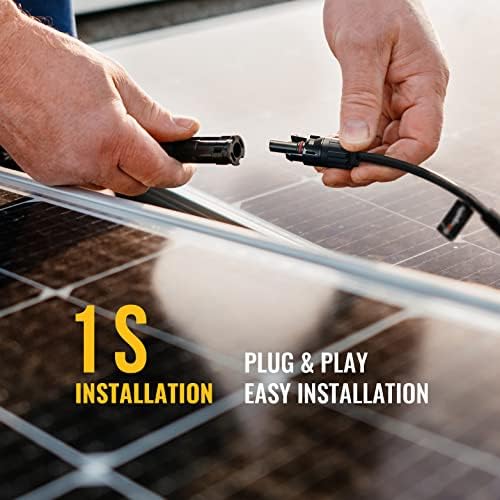

- Connection: Plug-in with built-in lock
- Listed branch sizes: 2 through 6 leads
- Listed package quantities: 1, 2 or 4 pairs
Frequently Asked Questions
What does the base Y-branch pair connect?
The base BougeRV pair connects two compatible solar panels in parallel.
Which cable sizes fit the documented connectors?
The connectors are documented for 14–10AWG solar cable.
How should I choose among the variants?
Match the listed branch count and pair quantity to the exact number of panel leads in the array.
