30+5 µF Dual Run Capacitor, 370/440V CBB65 Round HVAC Capacitor with Labeled HERM, FAN and C Terminals

30+5 µF Dual Run Capacitor, 370/440V CBB65 Round HVAC Capacitor with Labeled HERM, FAN and C Terminals

$45.90
$45.90

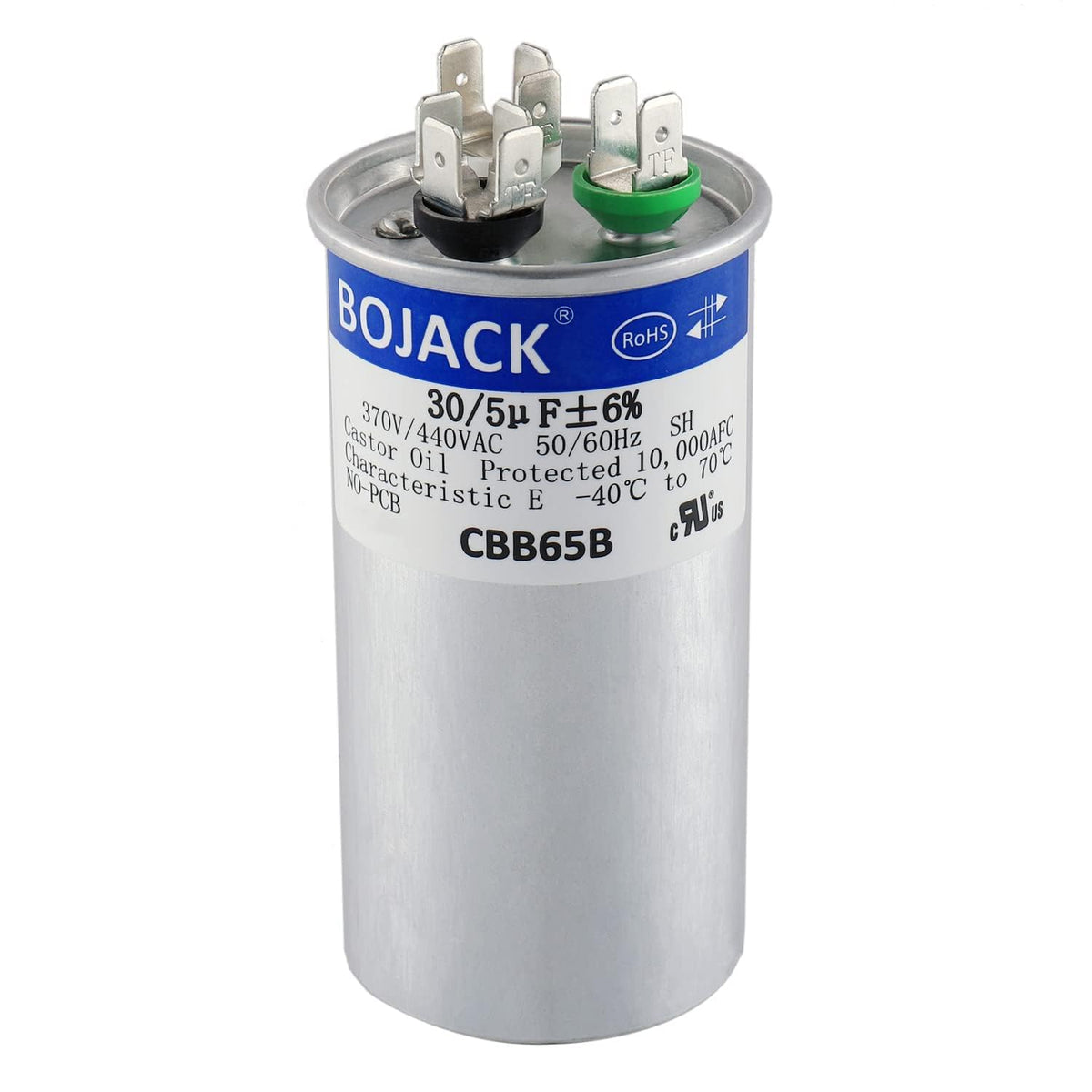

A 30+5 µF dual run capacitor powers compatible compressor and condenser-fan motors from one compact round component. The three top terminal groups are clearly labeled HERM for the compressor, FAN for the fan motor and C for common, helping a qualified technician reproduce the documented wiring layout during replacement.

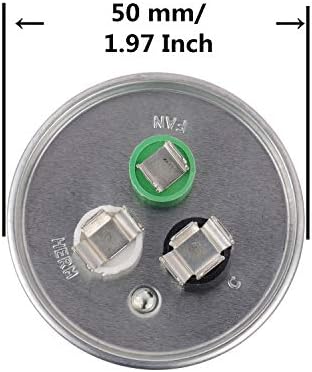

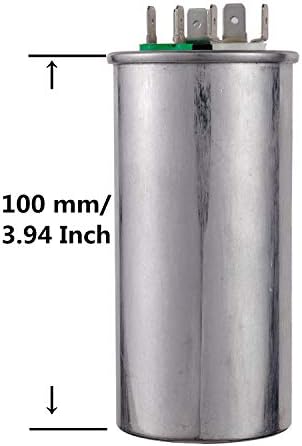

Rated for 370/440V AC at 50/60Hz, the metallized polypropylene CBB65 capacitor operates from -40°C to 70°C and includes a listed 10,000 AFC safety rating. The 1.97-inch diameter and 3.94-inch height fit many compatible HVAC compartments. It may replace an oval unit only when both capacitance values, voltage, terminal arrangement and mounting clearance match.

Specifications

  • Product: round dual run HVAC capacitor
  • Capacitance: 30+5 µF / MFD
  • Tolerance: ±6%
  • Rated voltage: 370/440V AC
  • Frequency: 50/60Hz
  • Shape: round
  • Shell material: metal
  • Dielectric: metallized polypropylene film
  • Terminals: HERM / H FAN / F and C common
  • Operating temperature: -40°C to 70°C / -104°F to 158°F
  • Safety rating: 10,000 AFC listing
  • Dimensions: 1.97-inch diameter x 3.94-inch height
  • Uses: compatible central air conditioners heat pumps compressors and condenser fan motors
  • Model: CBB65 universal model
  • Brand: BOJACK

Frequently Asked Questions

Which terminal connects to each HVAC component?

The top groups are labeled HERM or H for the compressor FAN or F for the fan motor and C for the common line. Follow the equipment wiring diagram.

Can this round capacitor replace an oval one?

Yes only if 30+5 MFD voltage terminals and available mounting space all match the equipment requirements. Shape alone does not determine compatibility.

Is the capacitor rated for both 370V and 440V systems?

It carries a 370/440V AC rating. Still confirm the original capacitance and every equipment specification before replacement.

What is its operating temperature range?

The listed range is -40°C to 70°C or -104°F to 158°F for compatible 50/60Hz HVAC motor applications.
