12-Circuit Blade Fuse Block with Negative Bus, 100A Marine DC Panel for ATO or ATC Fuses and Cover
12-Circuit Blade Fuse Block with Negative Bus, 100A Marine DC Panel for ATO or ATC Fuses and Cover

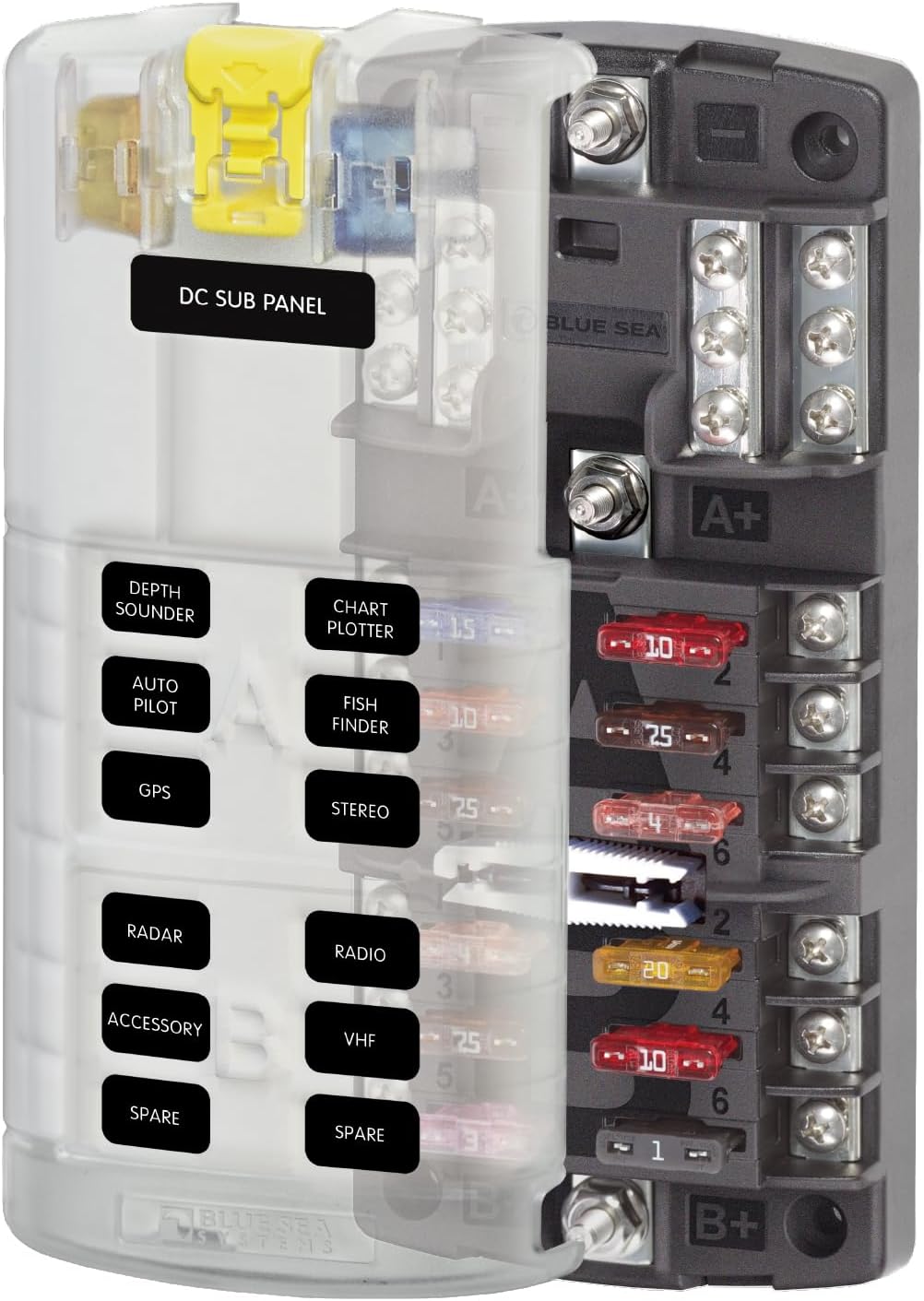

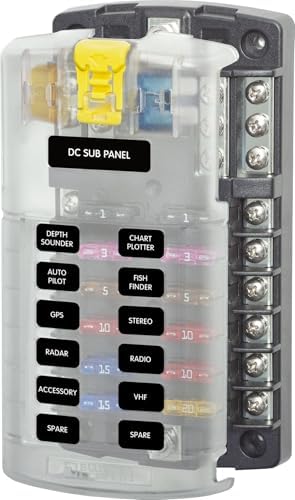

This 12-circuit blade fuse block organizes protected DC branches and their negative returns in one compact panel for boats, RVs, overland vehicles and custom automotive systems. An integrated negative bus reduces wiring clutter, while recessed label areas make individual circuits easier to identify during maintenance and troubleshooting.

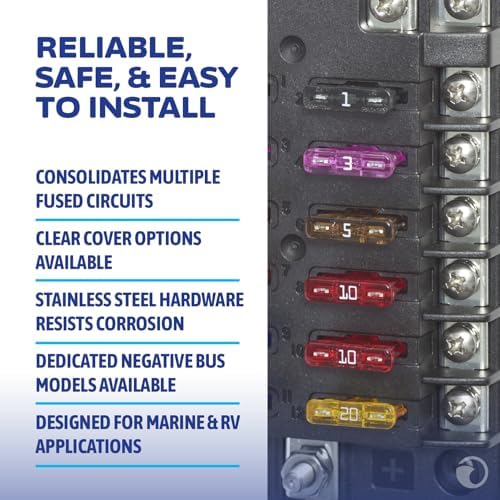

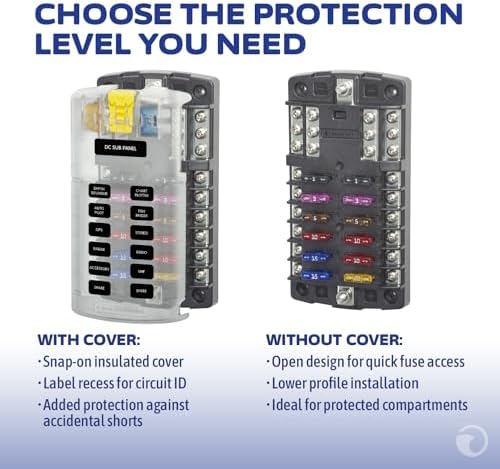

The documented configuration accepts ATO or ATC blade fuses, handles up to 100A total and supports up to 30A per circuit. Tin-plated copper buses and durable fuse clips resist corrosion in demanding environments, and the clear cover uses a push-button latch with space for spare fuses. Choose from listed four-, six-, eight- or twelve-circuit layouts, with or without negative bus, terminal-mount and cover options. Match total load, fuse size and wiring to the installation.
Specifications
- Documented circuits: 12
- Fuse compatibility: ATO or ATC blade fuses
- Total capacity: Up to 100A
- Per-circuit capacity: Up to 30A
- System voltage: 12V DC listed
- Bus material: Tin-plated copper
- Mounting: Screw mount
- Cover: Clear insulating cover on documented model
- Included labels: 20 write-on circuit labels
- Model: 5026 documented
Frequently Asked Questions
Which fuse types fit the documented block?
The 12-circuit model accepts standard ATO or ATC blade fuses.
Does it include a ground connection point?
Yes. The documented 5026 configuration has an integrated negative bus for organized return wiring.
How much current can the panel handle?
It is rated up to 100A total and up to 30A on each properly fused circuit.
Can I order a different circuit count?
Yes. The listing includes four-, six-, eight- and twelve-circuit arrangements with differing bus, mounting and cover options.
