Reusable Lever Wire Connectors, 30-320 Piece Kits for 28-12 AWG Solid and Stranded Conductors
Reusable Lever Wire Connectors, 30-320 Piece Kits for 28-12 AWG Solid and Stranded Conductors

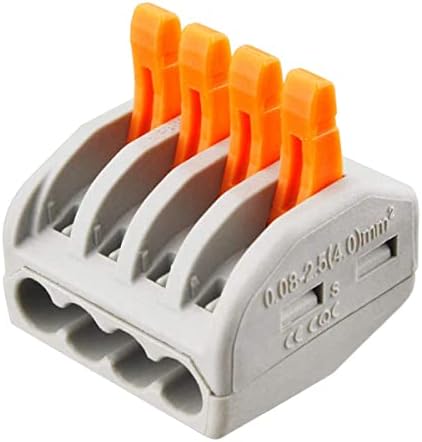

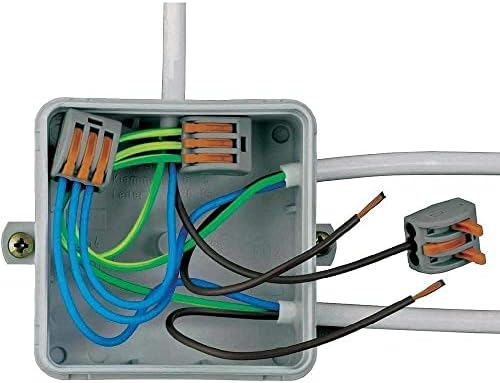

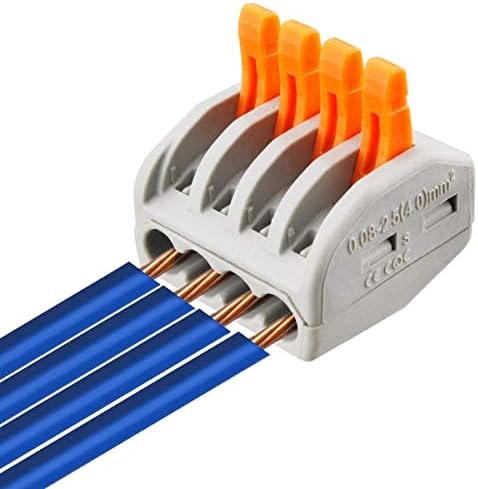

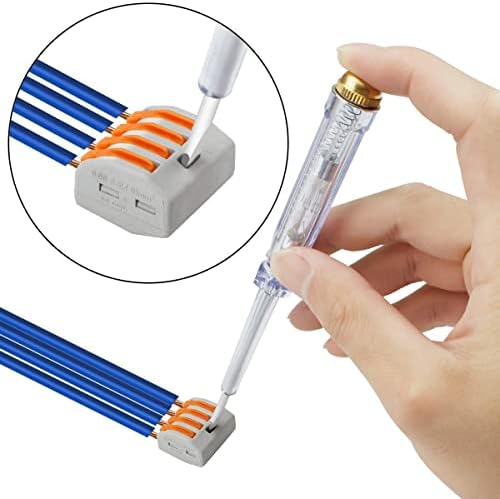

These reusable lever wire connectors join solid or stranded conductors without twisting or a separate installation tool. Lift the orange handle, insert a correctly stripped wire and close the lever for a compact insulated connection in lighting, fans, automatic doors and small appliances; a rear test hole supports circuit checking.

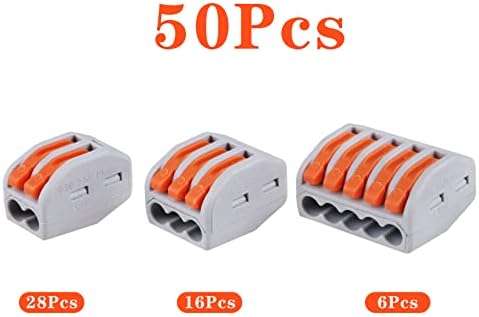

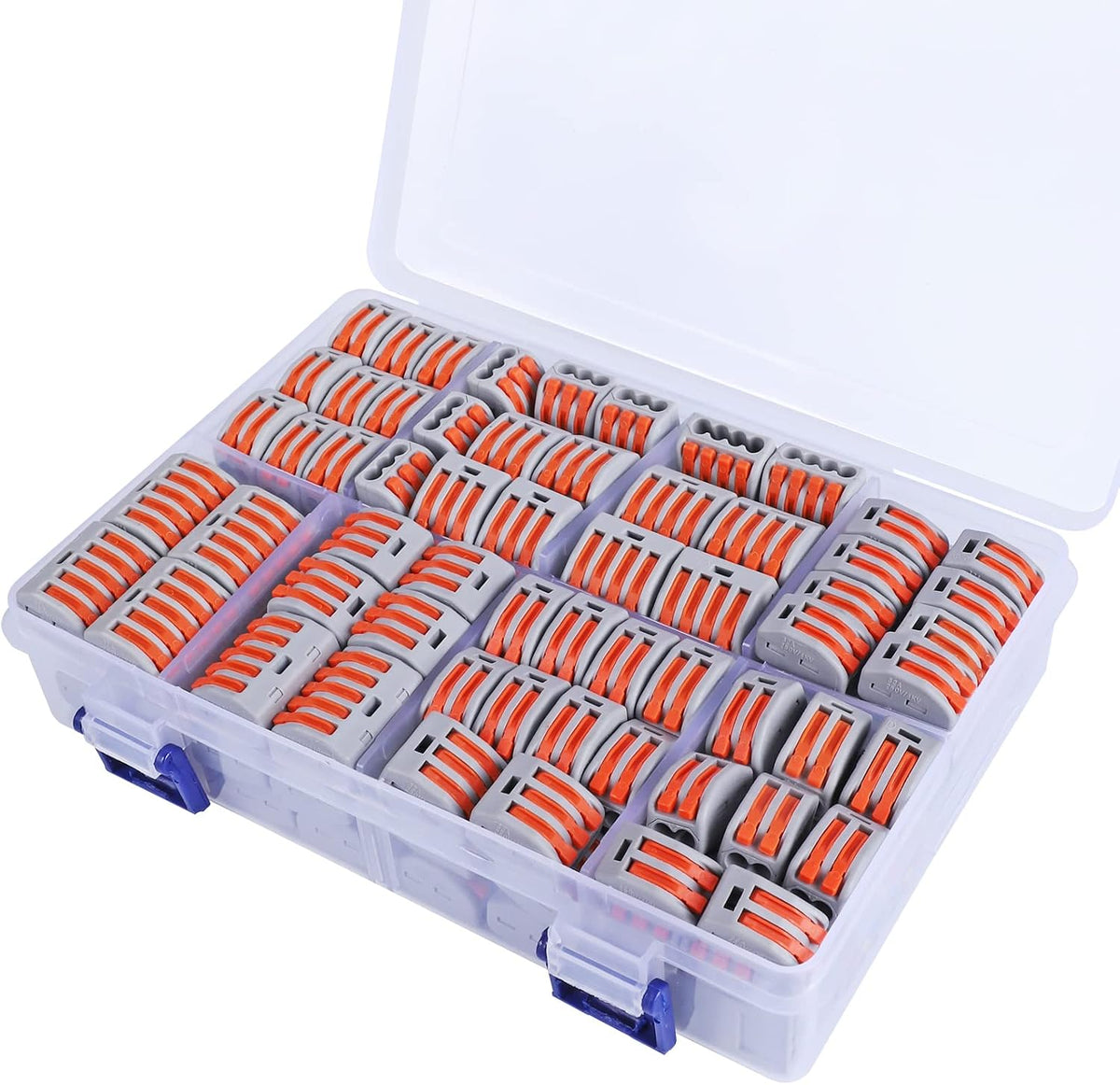

Choose 30, 50, 115 or 160-piece assortments, plus a two-pack of the 160-piece kit. Mixed boxes contain 2-, 3- and 5-conductor connectors for AWG 28–12 wire. The documented rating is 250V, 4kV impulse and 32A. Strip only 0.35–0.47 inches, insert fully and have electrical work completed or checked by a qualified person.
Specifications
- Connector: Reusable lever terminal
- Conductor positions: 2 3 or 5
- Wire range: AWG 28–12
- Conductor types: Solid and stranded
- Pack options: 30 50 115 160 or 320 total pieces
- Rated voltage: 250V
- Impulse voltage: 4kV
- Rated current: 32A
- Strip length: 0.35–0.47 inches
- Materials: Copper nylon and stainless steel
Frequently Asked Questions
Which wire types are compatible?

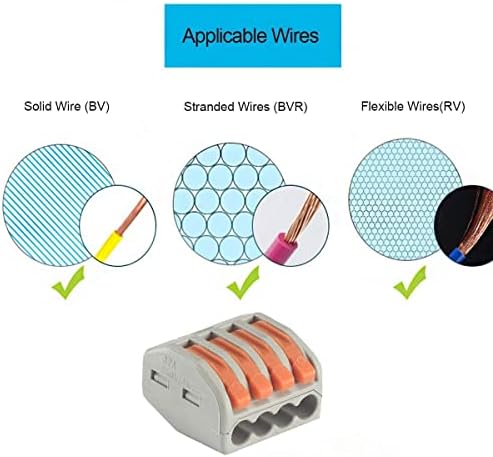

The connectors accept supported solid and stranded single- or multi-strand conductors from AWG 28–12.
Can a connector be reused?
Yes. Lift the lever to remove an undamaged wire and insert a correctly stripped replacement.
Which connector sizes come in the assortment?
Mixed kits include 2-, 3- and 5-conductor lever terminals.
What are the electrical ratings?
The source lists 250V rated voltage, 4kV impulse voltage and 32A rated current.
