Inline Fuse Holders, 4-Pack 10 AWG 12V Water-Resistant ATC/ATO Holders with 40A Blade Fuses - Qizpcer
Inline Fuse Holders, 4-Pack 10 AWG 12V Water-Resistant ATC/ATO Holders with 40A Blade Fuses - Qizpcer

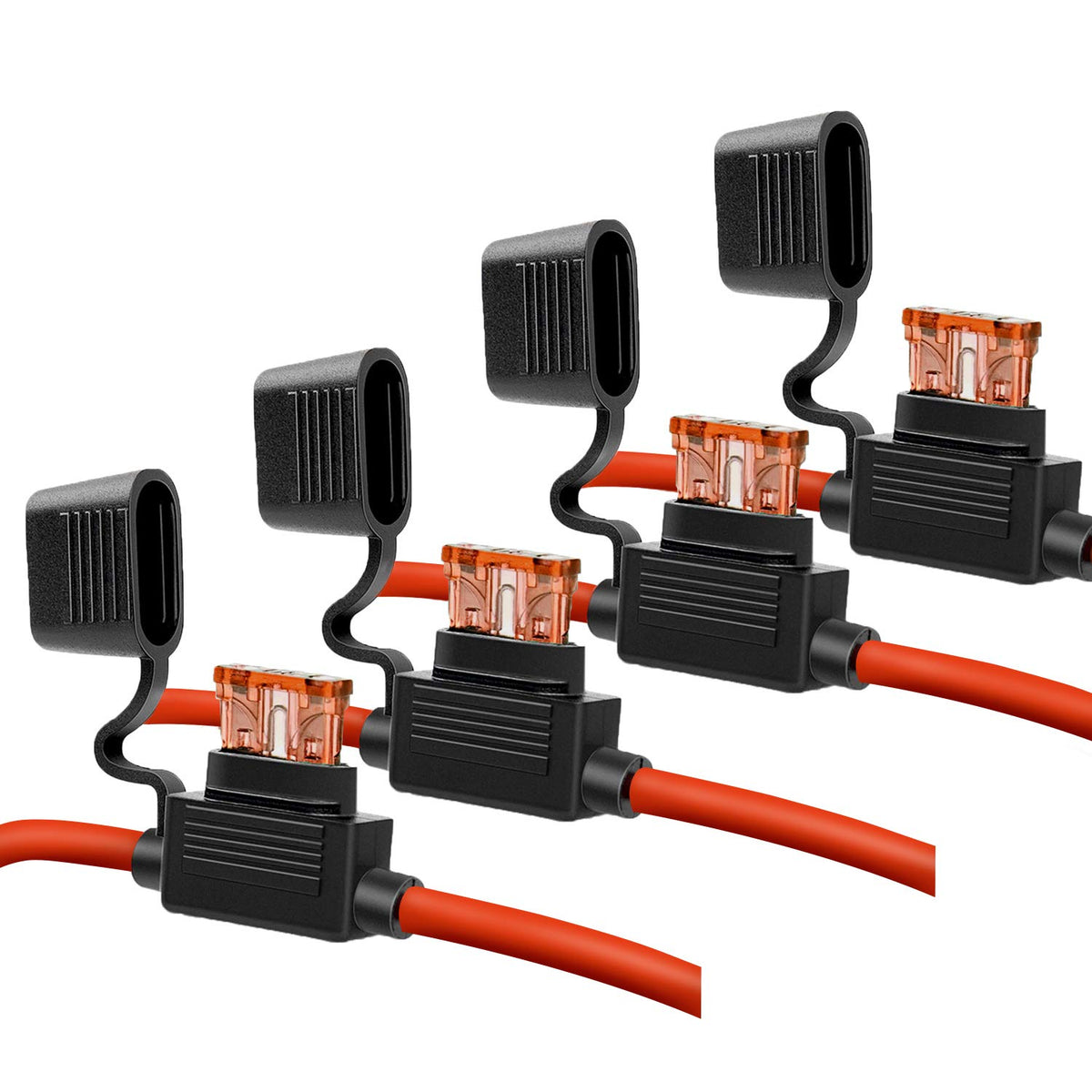

Inline fuse holders add accessible circuit protection close to a battery or power source in compatible 12V vehicle, boat and equipment wiring. This Qizpcer four-pack includes four red 10 AWG holders and four 40-amp ATC/ATO blade fuses. Six-inch wire loops on each side provide room for splicing, while capped housings help keep dust and incidental moisture away from the fuse.
Each holder measures about 42 x 35 x 13mm and supports standard ATC/ATO blade fuses from 1 to 40 amps. The cap is described as water resistant, but the holder must not be submerged. Select fuse rating for the wire, load and equipment rather than automatically using the supplied 40A fuse. Disconnect the battery, make secure sealed splices and mount the holder away from heat, abrasion and standing water.
Specifications
- Brand: Qizpcer
- Product: Inline blade fuse holders
- Holder quantity: 4
- Included fuses: 4
- Included fuse rating: 40A
- Wire gauge: 10 AWG
- Voltage: 12V
- Fuse format: ATC and ATO blade
- Supported fuse ratings: 1-40A listing
- Wire color: Red
- Conductor: Tinned copper listing
- Jacket and cap: Rubber
- Wire loop length: 6 inches each side

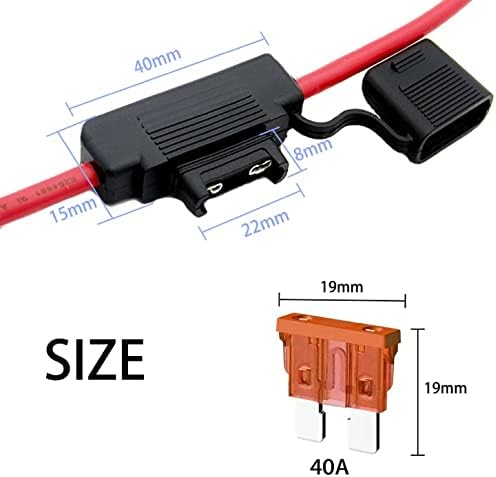

- Holder dimensions: 42 x 35 x 13 mm
- Protection: Water-resistant cap
- Submersion: Not recommended
Frequently Asked Questions
What comes in the four-pack?
The kit includes four 10 AWG inline holders and four 40A ATC/ATO blade fuses.
Can I install a lower-rated blade fuse?
The holder accepts listed ATC/ATO ratings from 1 to 40A, but the chosen fuse must protect the wire and connected equipment.
Is the fuse holder waterproof?
The cap is water resistant against dust and incidental moisture, but the source says not to use it directly in water.

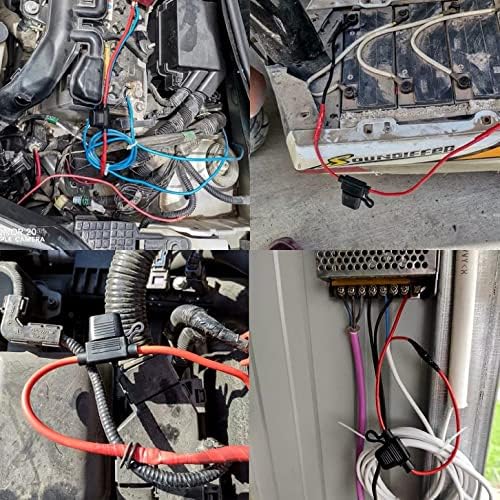

Where can these holders be used?
They suit compatible 12V car SUV ATV truck trailer and boat circuits when correctly sized and installed.
